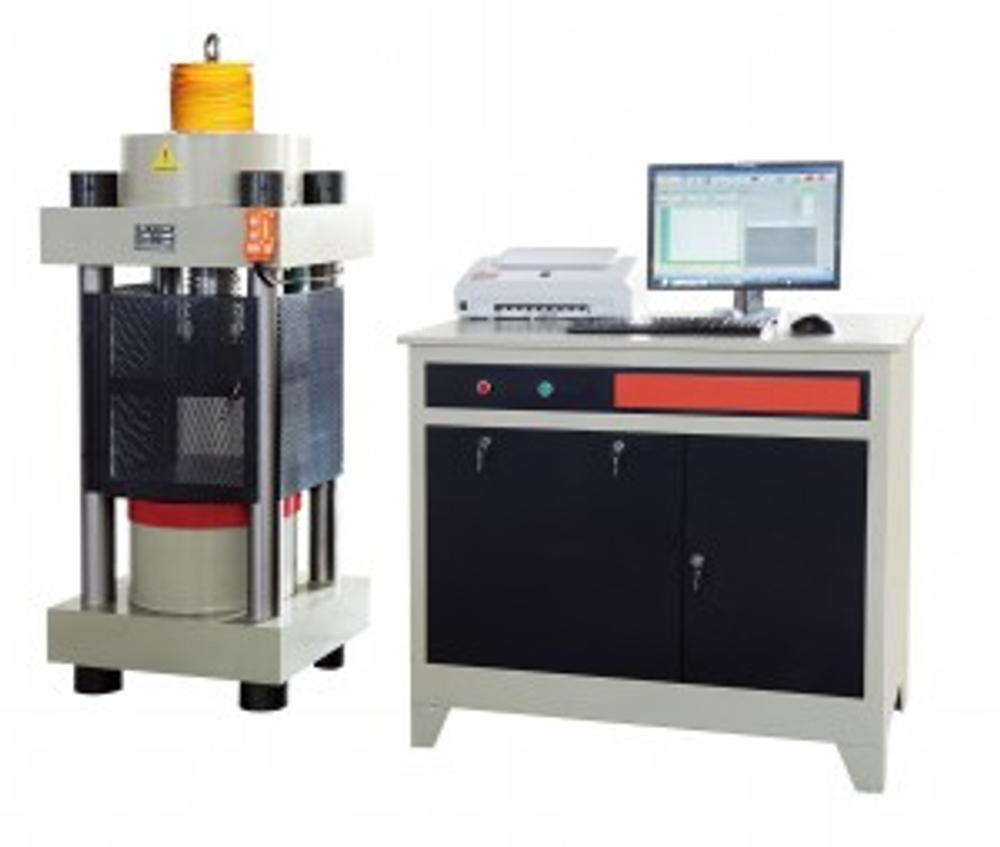

Model: CTM-2000H
Features
Servo controlled, automatic test
English operation menu, friendly for foreign users
Wide application, can be used for test of brick, rock, cement, concrete
Compact in size, nice appearance
Technical specifications
| Max test power | 2000kN |
| Indication value relative error | ≤±1% |
| upper/lower platen size | 370×370mm |
| upper/lower platen Max. space | 320mm |
| Piston Max. stroke | 30mm |
| Piston Dia. | φ250mm |
| Hydraulic pump rated pressure | 40MPa |
| Motor power | 0.75kW |
| Overall size(mm) | 800×500×1200 |
| Net weight | Approx 750Kg |
