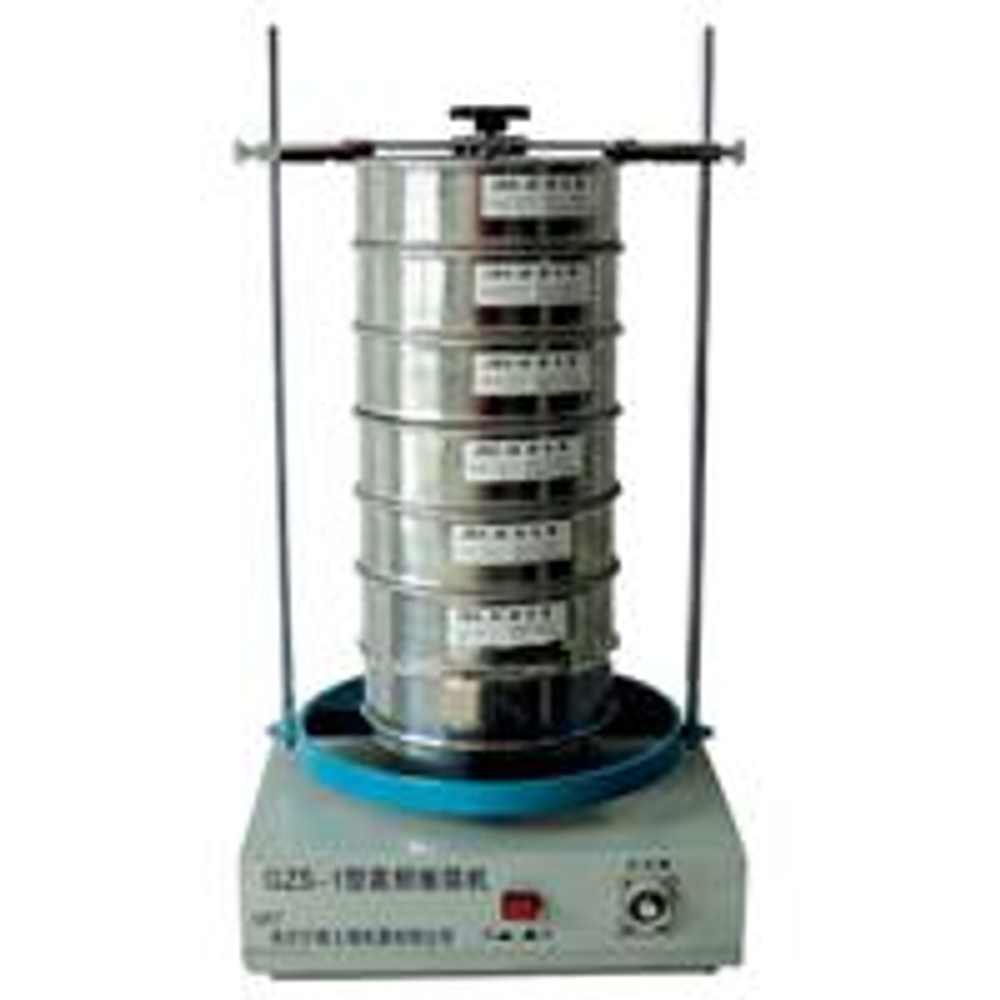

Sieve shaker for soil

Model: GZS-1

Description

The high frequency sieve shaker is mainly used to perform grading analysis of soil and aggregate. It’s of table type and high frequency vibration structure. It features compact in structure, light-in-weight, low noise, low power-consumption. It’s suitable for grain soil less than 20mm in size but over than 0.075mm. this sieve shaker is the necessary testing instrument for civil engineering test laboratory.

Technical Specifications

Vibration frequency: 500times/min

Vibration type: up/down

Vibration amplitude: 1.5mm

Timing range:0-60min, free set

Vibration motor power: AC220V, 25W

Sieve size: Φ200x50mm(9pcs) or Φ300x75mm(7pcs)

Select the standard analysis sieve size of 20-0.075mm
