Description

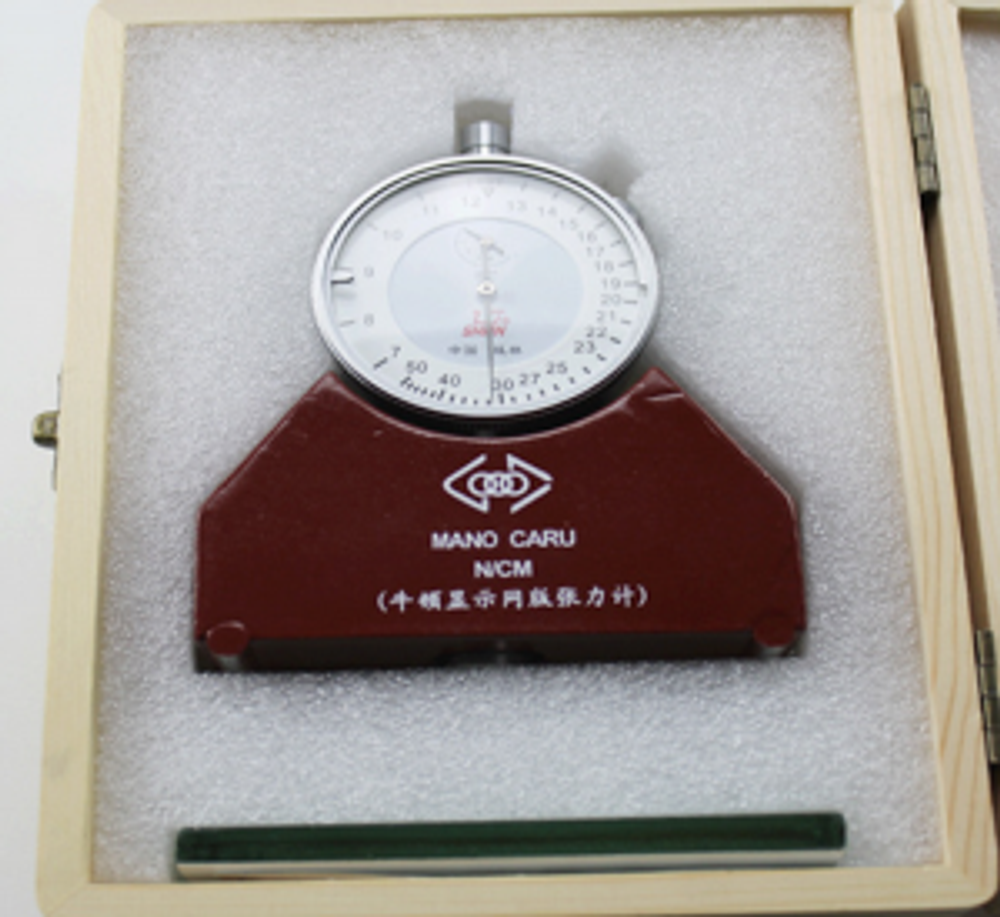

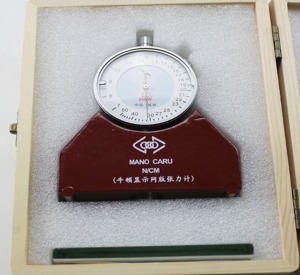

The silk screen tension meter is used to test the silk screen tension, it’s kind of common testing equipment widely used in printing and PCB industry.
Technical specifications
Testing range: 7-50N/cm, 7-36N/cm
Overall size: 25*25*10cm
Packing size: 30*30*15cm
Net Weight: 1kg
Accuracy: ±2N/cm
Printing Task And Silk Screen Tension Reference Table
| Screen fabric type | Printing task type | Tension(n/cm) |
| Ultrahigh tension silk screen | Pcb and measuring scale | 16-20 |
| High strength silk screen | Multi color and 4 color overprinting(machine print) | 16-20 |
| High accuracy ultrasilm silk screen | High accuracy multi layer circuit printing | 25-30 |
| High accuracy pet(standard single wire) | Multi color and four color overprinting(manual print) | 8-12 |
| Normal pet(standard single wire) | Flat object | 8-12 |
| Nylon wire net | Hook face or different face rough object | 8-12 |
