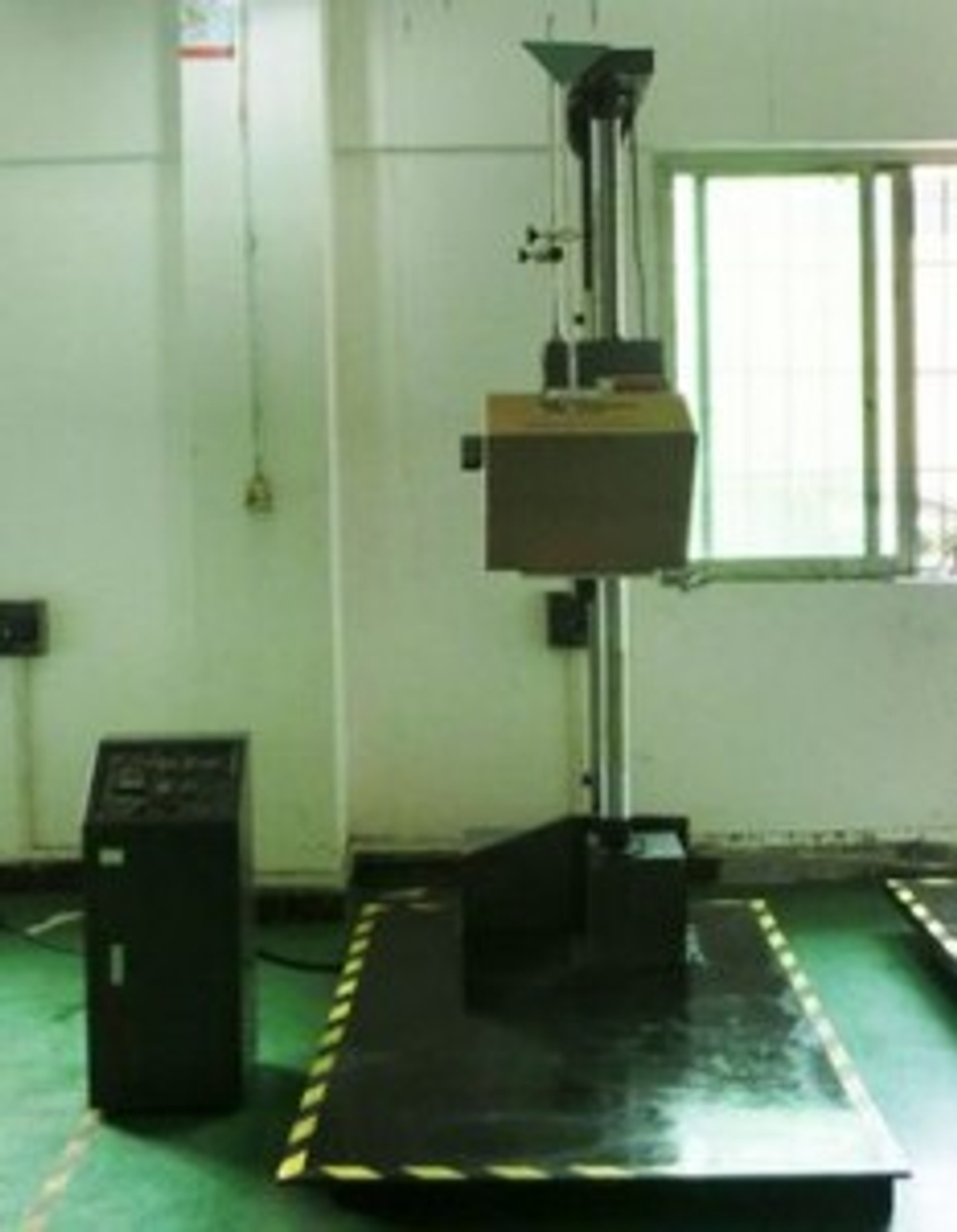

Single Beam Drop Testing Machine

Model: DL-60

Standards: ：GB/T4857.5-92，ISO2248，JISZO202-87

Description

The single beam drop testing machine is used to simulate the drop status during transportation conditions thus to test the package strength, it’s kind of common package testing equipment.

Features

Single beam drop

Baseplate is solid steel plate

Digital height setup

Electric motor driven

Chain transmission lifting

Electromagnetic control

Electric corbel reset

Technical Specifications

1. Drop height: 300~1500mm(adjustable)
2. Sample max weight: 60kg
3. Sample max size: 1000*800*1000mm
4. Impact plate size: 1200*1700mm
5. Corbel size: 160*160*8mm
6. Drop height error: ±10mm
7. Drop plane angle error: ＜1°
8. Test mode: plane, edge, angle
9. Machine net weight: 600kg
10. Transmission mode: electric transmission
11. Power supply: AC220V/50hz, 5A
