Soil specific gravity Soil Hydrometer

Model: TM85

Introduction

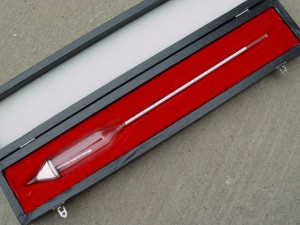

The soil hydrometer is used to measure the soil specific gravity in lab, it’s kind of professional soil testing instrument.

Technical Specifications

1. Blister Volume(Vb): 62.37cm3
2. Testing range: 0.995~1.050/0.995~1.020
3. Blister Center To The Lowest Scale Distance(Lo): 9.10cm
4. Scale Total Length: 13.50cm
5. Professional Measuring Cylinder Settlement Distance Calibration Formula: L=A-Br; A=21.50; B=0.273
6. Wherein L Is The Settlement Distance Calibration Value, Unit Is Cm, R Is The Hydrometer Readout

Other Equipments For The Soil Density Test

1. Measuring Cylinder, Effective Volume 1000ml, 60mm Inner Dia., 450mm Height

2. Analytical Balance, 200g/0.01g

3. Others, Thermometer, Stirrer, Sand Bath, Disperse Agent, Pure Water, Stop Watch
