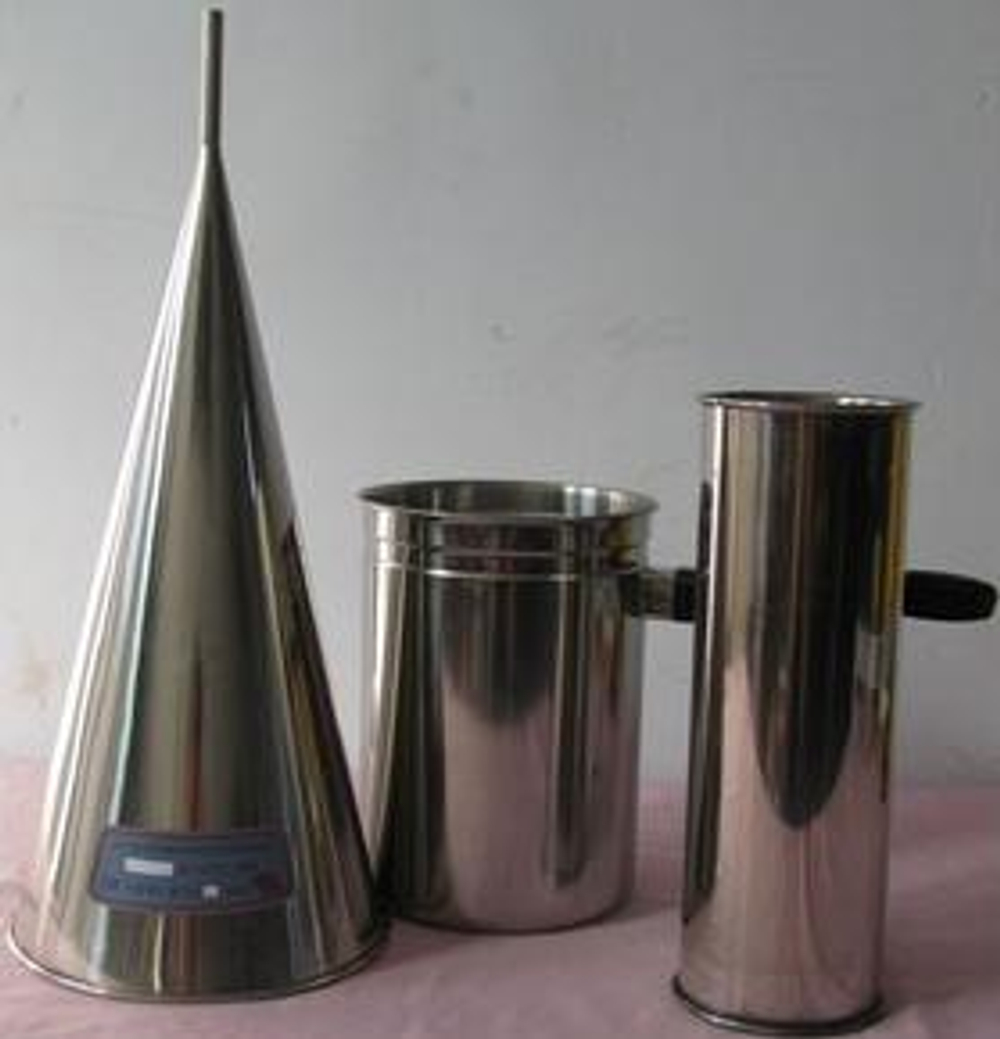

Stainless steel Marsh funnel viscometer

Model: MLN-3

Description

The Marsh funnel viscometer is used to test the drilling liquid relative viscosity( compare with water) in field, it’s designed according to the API standards, it test 946ml drilling liquid flow-out time from the funnel, thus to determine the drilling liquid viscosity. It’s portable, easy in operation, it’s widely used in oilfield, geotechnical research department.

Technical specifications

1. Equipped with Stainless steel liquid cup

2. Mesh size: 1.6mm (12 hole)

3. Volume under the screen: 1500ml

4. Flow out pipe dia.10mm, length 100mm

5.When fill in with standard distilled water, the standard flow-out time is 26 ± 0.5s(946ml)

6.Overall size: 150×150×380mm
