Standards: JTJ058, GB/T17671, ISO679
Description

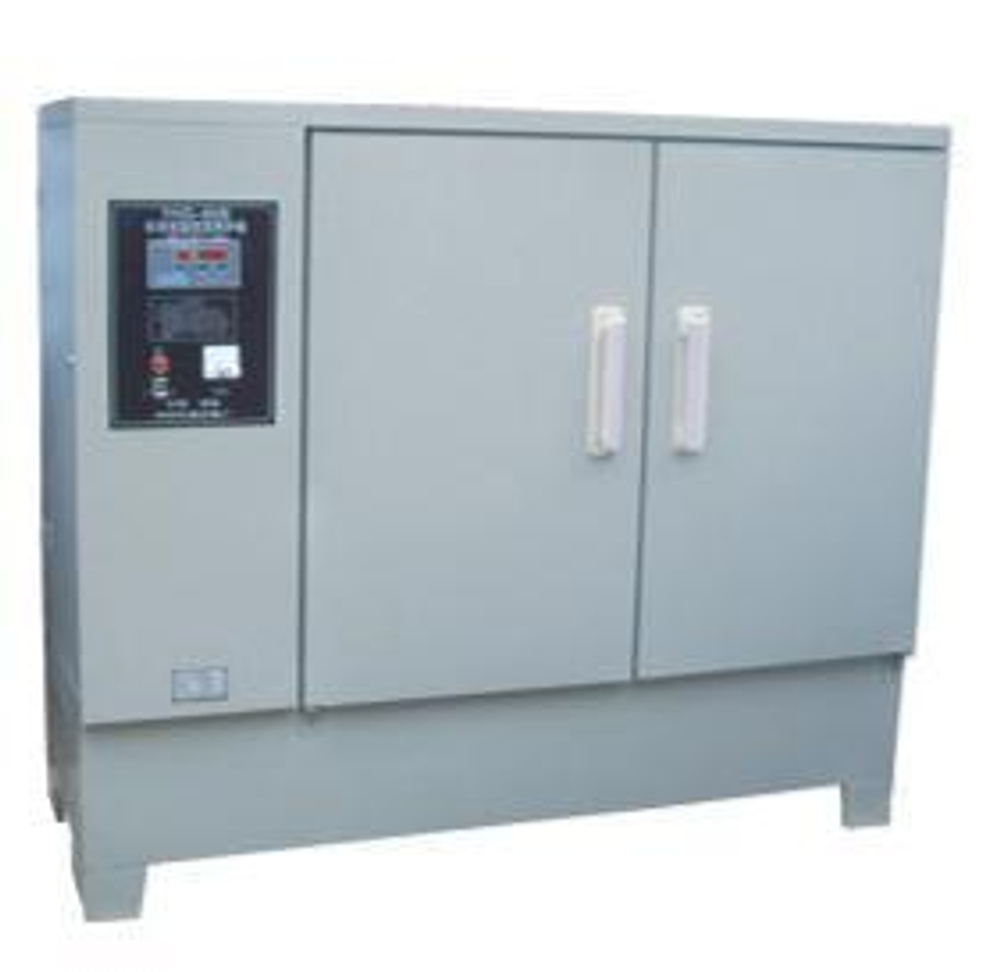

This curing cabinet is suitable for curing of cement, concrete, cement product, automatic temperature control, uniform temperature, digital setting & display, it’s kind common concrete testing equipment in lab.
Features
Chamber constructed of 3 layers, liner made of mirror stainless steel, enclosure made of quality cold rolling steel plate, middle layer filled with quality heat insulation cotton, frame made of aluminum alloy, robust structure, nice appearance, good corrosion resistant;
Full digital display temperature & humidity controller, high resolution, direct reading, easy operation, high accuracy
Large power compressor for refrigeration system, coil evaporator, external condenser, fan inside to reach uniform temperature
High power electric heating tube
Advanced ultrasonic humidifier reach better humidification effect
Technical specifications
| Model | BYH-20B | BYH-40B | BYH-60B |
| Inside temperature(℃) | 20±1.5 | ||
| Temperature controller error(℃) | ±1 | ||
| Controlled temperature(%RH) | ≥90 | ||
| Heating power(W) | 600 | ||
| Cement specimen size | 40*40*160mm | ||
| Concrete specimen size | 150*150*150mm | ||
| Cement Sample number | 20 | 40 | 60 |
| Concrete specimen capacity | 10 | 20 | 30 |
| Working power supply | AC220V±10% 50Hz | ||
| Working chamber size(mm) | 580×550×900 | 600×500×1180 | 580×1200×1400 |
