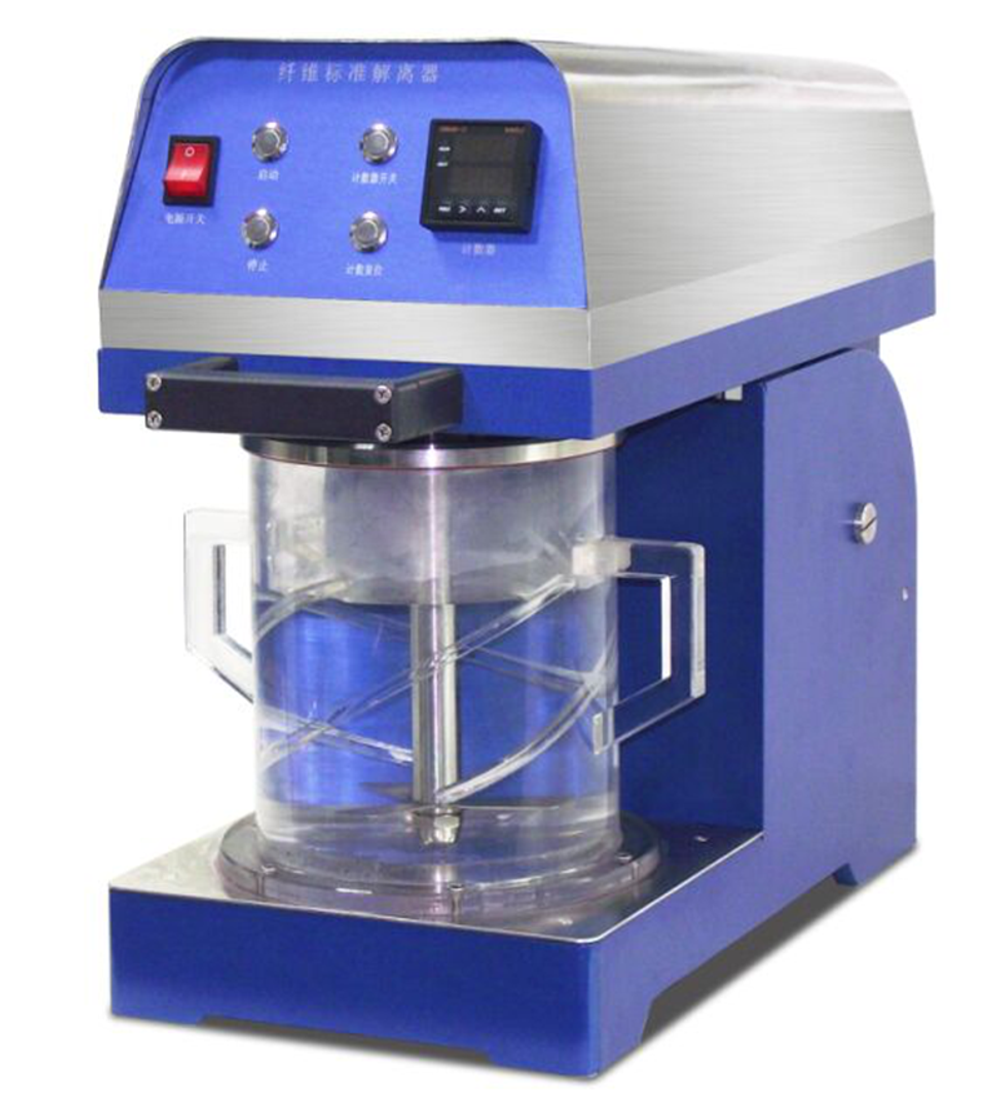

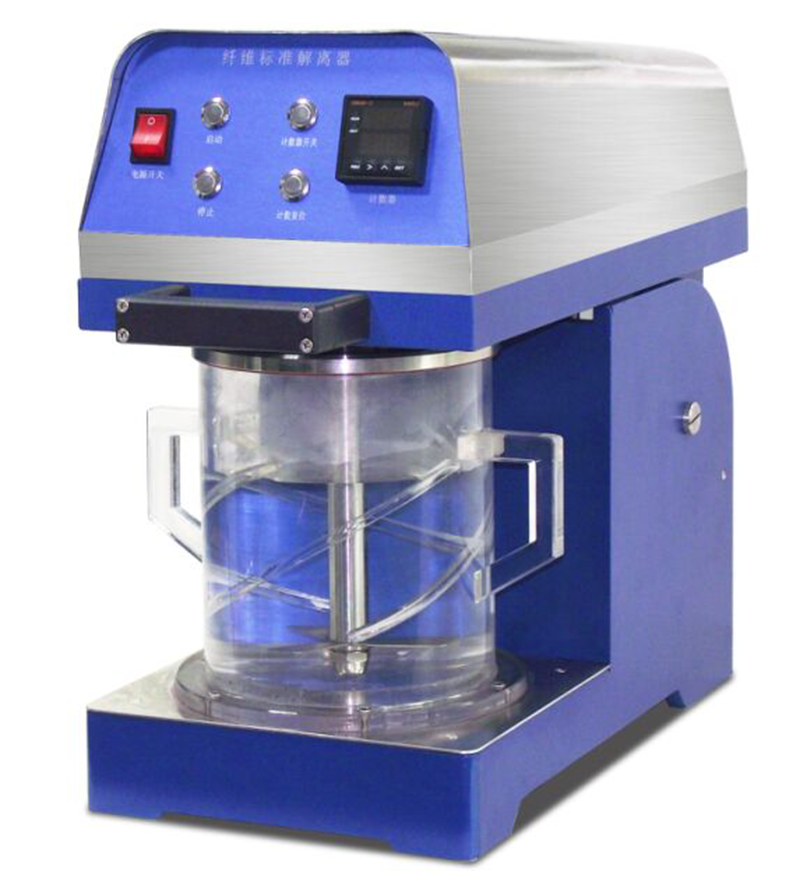

Standard fiber Dissociator TAPPI-T205

TheStandard fiber Dissociator (also known as standard fiber disintegrator or standard fiber stirrer) is a specialized equipment that uses high-speed rotation to separate pulp fiber raw materials into single fibers.

Standards

JIS-P8220,TAPPI-T205,ISO-5263,QB/T 1462

Specifications of Standard fiber Dissociator

1. Inner diameter size of container: Φ （152±2）mm × H(191±2)mm
2. Slurry concentration: 0.8% or 1.2% or 2.2%
3. Absolute dry slurry: 24gor60g
4. Slurry volume: 2Lor2.7L
5. Container volume: approximately 3.466L
6. Mixing chamber: Transparent material mixing chamber, real-time detection of fiber loosening status
7. Separation method: 105 ° oblique pressure separation, with the handle having both separation and fastening functions
8. Slurry chassis: 06Cr19Ni10 anti-corrosion platform
9. Inner baffle spiral: Inner spiral structure: 6.5 * 6.5 * 51 * 4
10. Height above the baffle: (57 ± 1) mm
11. Height under the baffle: (32 ± 1) mm
12. End radius: 3mm
13. Edge radius: 0.4mm
14. Center distance between baffles: (51 ± 1) mm
15. Mixing impeller speed frequency: (48.3 ± 1.65) S-1
16. Special mixing speed: (1000-5000) r/min (customized)
17. Rotation diameter: φ ninety
18. Edge radius: R=0.8mm
19. End chamfer radius: R=4.0mm
20. Bottom spacing: (25 ± 2) mm
21. Bottom radius: R=13.0mm
22. Boundary dimension: 450 × two hundred and sixty-five × 395mm
23. Weight: 42kg
