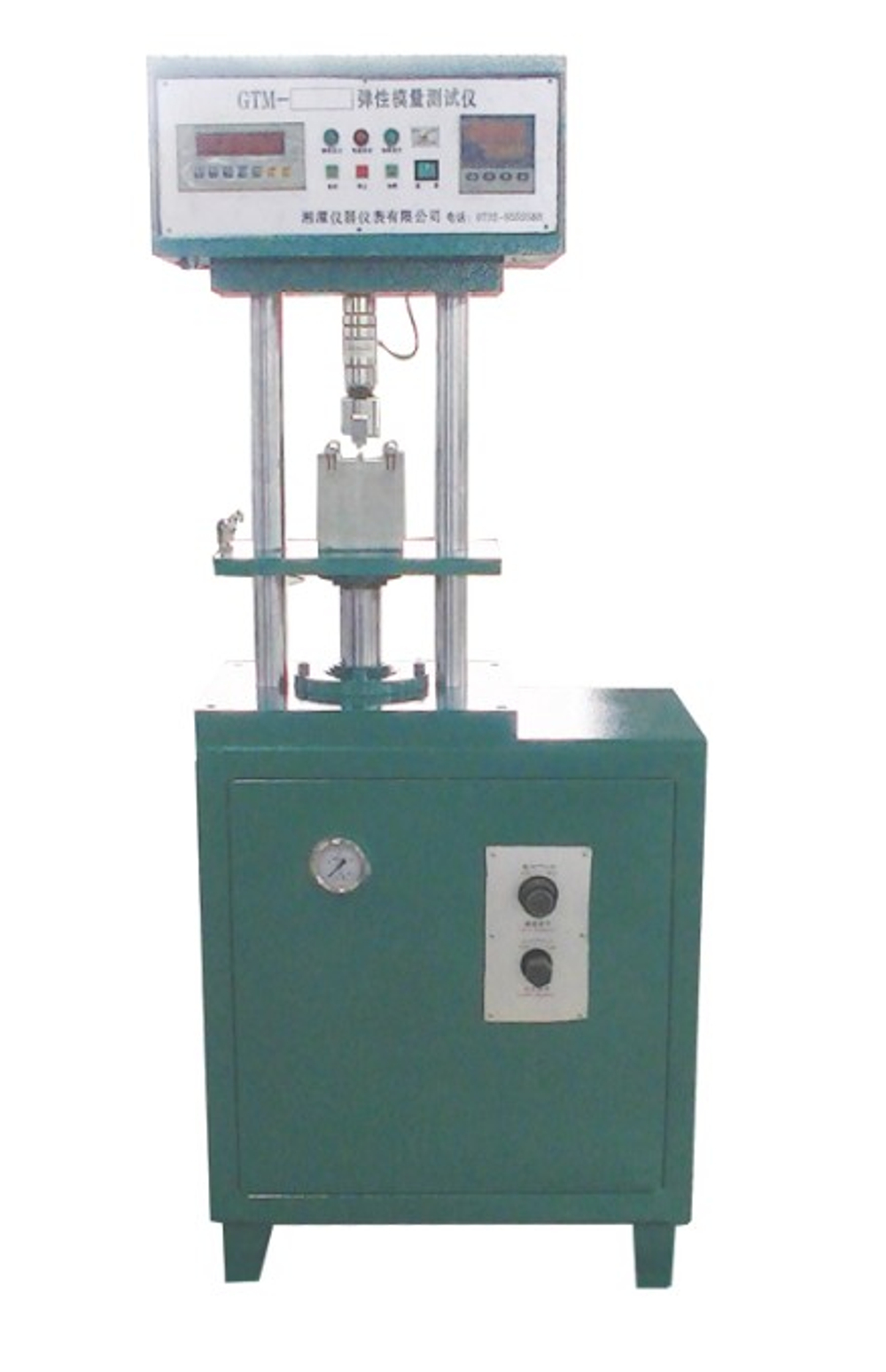

This instrument is suitable for determine the static elastic modulus of engineering ceramics, fine ceramics, and carbon materials for aluminum at room temperature. Measured using the three-point bending loading method. It is composed of hydraulic loading system, deformation measurement system, pressure measurement system and computer measurement and control system. The deformation measurement system uses high-precision displacement sensors to measure micro-strain; the pressure measurement system uses high-precision pressure sensors and digital pressure gauges to measure; the three major measurement and control systems are all controlled by computers to realize automatic testing, data processing, and print out test reports.
Standard
GB/10700-2006 “Test method for elastic modulus of fine ceramics – bending method”,
YS/T63.13-2006 “Testing method for carbon materials for aluminum, Part 13 Determination of Young’s modulus – Static test method”
GB/T23266-2009 “Elastic Limit Testing of Ceramic Plates”,
Specifications
| Maximum load | 0~10000N or 0~50000N (other specifications can be customized according to user requirements) |
| Force measurement accuracy | relative error ≤±0.15% |
| Deformation measurement range | ±5mm |
| Deformation accuracy | relative error ≤±0.5% |
| Loading deformation rate | 0~1mm/min can be adjusted arbitrarily |
| Sample size | ≤120*100mm (conventional); Or: diameter 50mm, length 50mm or 820*100mm (other specifications can also be customized according to user requirements) |
| Voltage | 380VAC, 50HZ |
Configuration list
GTM-II tester, software, test fixture 1set, desktop computer 1set(configured according to the contract).
