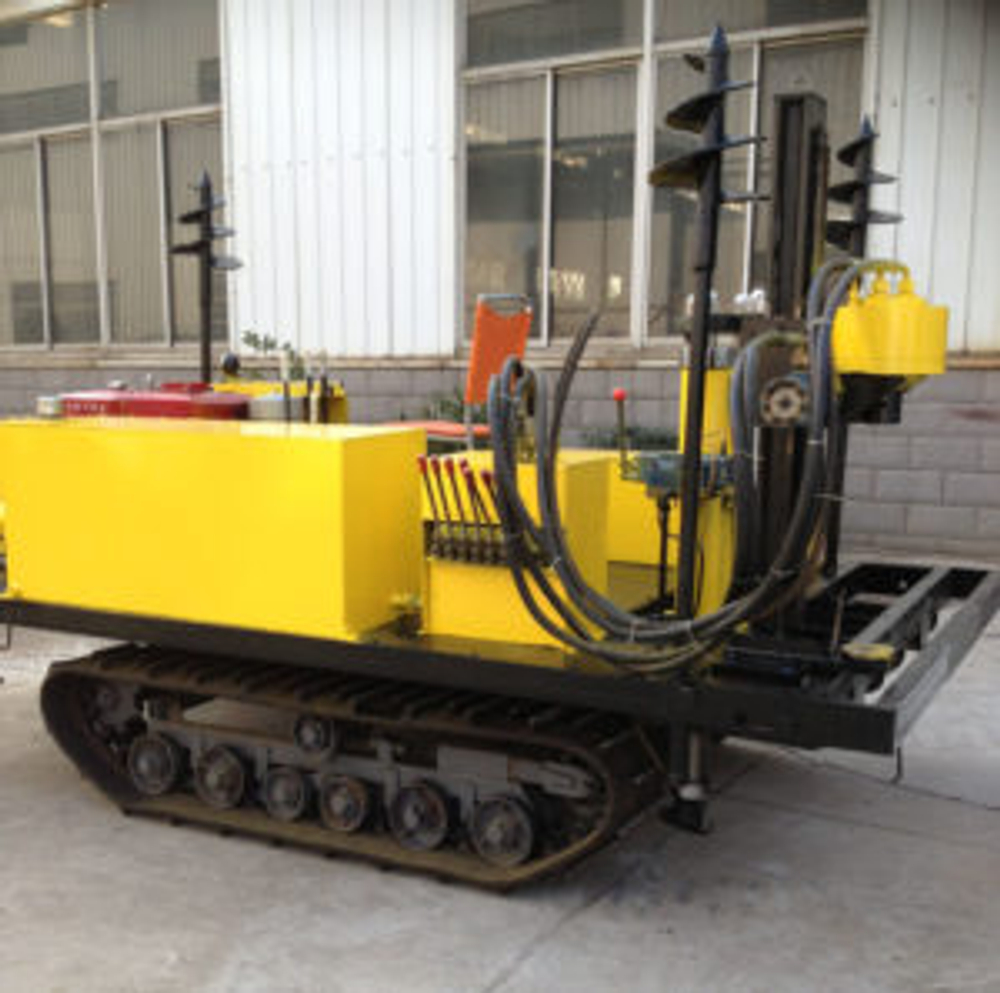

The CPT crawler-truck is a professional equipment used for geotechnical investigation for cone penetrtion test.
The CPT crawler-truck is constructed of Track chassis, 2 sets diesel engine, hydraulic supporting system, 2sets hydraulic Anchor mechanism, controller, platform, driving mechanism.
This equipment is an ideal equipment for static penetration test, it also can perform Pore pressure static test, DMT test, vane shear test, press-in wave speed test.
The CPT test has below functions:
- Soil classification
- Classify the soil type in mechanical basis
- Provide the physical index of foundation correlated to depth
Technical specifications
- Hydraulic static penetration test unit
| Model | CPTV-L6-5T | CPTV -L6-10T | CPTV -L6-15T | CPTV -L6-20T | CPTV -L6-25T |
| Penetration load | 50KN | 100KN | 150KN | 200KN | 250KN |
| Pulling force | 60KN | 140KN | 180KN | 240KN | 300KN |
| Penetration rate | 1.2m/min | 1.2m/min | 1.2m± 0.3m | 1.2m± 0.3m /min | 1.2m± 0.3m /min |
| Pulling speed | 3-4m/min | 3-4m/min | 3-4m/min | 3-4m/min | 3-4m/min |
| Piston rod | Φ 30 | Φ 40 | Φ 50 | Φ 50 | Φ 50 |
| Main unit weight | 100kg | 160kg | 180kg | 200kg | 200kg |
| Oil cylinder diameter | Φ 60 | Φ 80 | Φ 90 | Φ 100 | Φ 110 |
- Components
| 1. Diesel engine |
| Crawler walking 12.1kw, penetration: 17kw |
| 2. Walking unit |
| Walking speed: 0-13km/h |
| Climbing: ≤25° |
| Gearbox: dedicated gearbox |
| Chain: rubber chain, width 350mm, P90, gear number 46 |
| 3. Hydraulic system |
| Gear pump: CBF-F425-AEP |
| Flow: 25(L/min） |
| Pressure: 20mpa |
| Rotation speed: 2000r/min |
| Multi-way valve: ZSI-L15E-w-3Y, ZSI-L10E-w-40 |
| 4. Oil tank volume: ≥60L |
| 5. Working temperature: -20℃~40℃ |
| 6. Engine water temperature: ＜90℃ |
| 7. Hydraulic oil temperature: ＜65℃ |
| 8. Lifting oil cylinder: Dia. 100mm |
| 9. Stroke: 500mm(have to be tailor made if longer) |
| 10. Supporting capacity: 90KN |
| 11. Jacking capacity: 90KN |
| 12. Anchoring motor: QJM12-1.25, pressure: 16 MPa, rotation speed: 4-160rpm |
| 13. Machine overall size: L3000mm× W1900mm× H2250mm |
