Standards: JTJ051-93, GB/T 50123-1999
Model: TZJ-5
Description

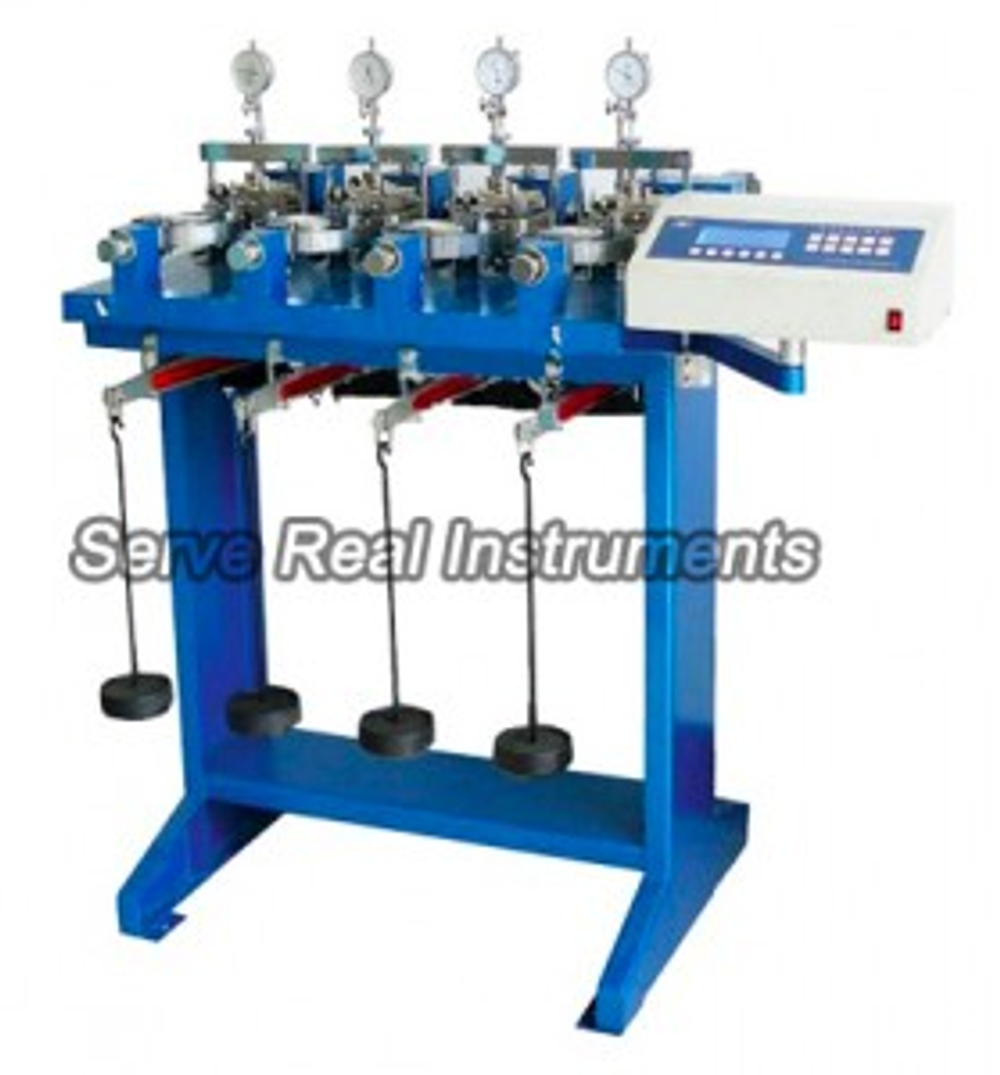

This direct shear testing machine can perform soil shear test for four specimens at one time, the shear speed is stepless adjustable, it’s very advanced soil testing instrument.
Technical parameters
1. Soil specimen area: 30cm², soil specimen diameter: 61.8mm
2. Soil specimen height: 20mm
3. Computer controlled vertical loading: 0-400kPa
4. Max horizontal displacement: 8mm
5. Maximum horizontal shear force: 1000kPa
6. Computer control Tetragenous timing shear, stepless speed-regulation 0.001-4.8mm/min, has speedy forward and fast backward function.
7.192*64 high resolution LCD display
8.16 digits thin film key control, equips displacement sensor and loading cells
Packing list
1. Main frame 1set
2. Loading device 4sets
3. Dial gauge 4sets and installation components, (0-10mm/0.01mm accuracy 0.1%)
5. Loading sensor 4sets and installation components, (0-5KN, accuracy 0.3%
6. Shearing control system, 1set
7. Acquisition system 1set, LCD display system 1set
8.Acquisition and processing software, Win7 system is compatible
