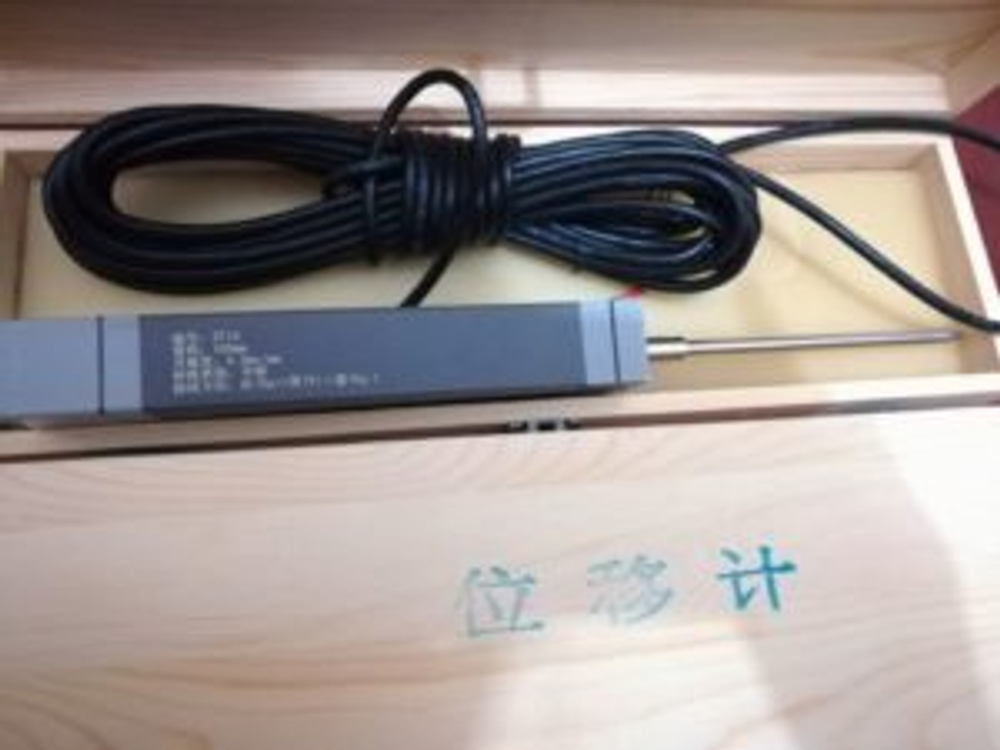

Strain type displacement transducer

Name: Strain type displacement transducer
SKU: 1869233177
Availability: InStock

Купить в 1 клик

Добавить в сравнение

Описание

Отзывы

Описание

dav

Technical specifications

Index	DMWY-5	DMWY-10		DMWY-20	DMWY-30	DMWY-50	DMWY-100	DMWY-200
Measuring range/(mm)	0-5	0-10		0-20	0-30	0-50	0-100	0-200
Full scale output(ue)	3000	4000		6000	6000	6000	8000	8000
Calibration coefficient (mm/ue)	0.00125	0.002		0.0025	0.00375	0.00625	0.0125	0.025
Bridge resistance()	350ohm
Overall size	Ø25*70		Ø25*80	Ø25*106	Ø25*136	Ø25*195	Ø25*345	Ø32*445
Net weight	0.6		0.8	1.0	1.5	2.0	3.0	4.5
Measuring reaction force	0.8-1.2		1.0-1.5	1.5-2.0	1.8-2.5	2.0-3.0	3.0-4.0	4.0-5.0
Applications	Surface strain or crack width				Displacement
Accuracy	0.5%
Temperature range	-35-70 degree C
Amplifier sensitivity	2.0
Bridge voltage	<=10v
Humidity range	90%RH
Bridge type	Full bridge, stainless steel made, temperature compensation
Extended cable length	Customized
Dynamic response frequency	<50hz
Wire connection way	Red: power+, blue: power-; yellow: signal+, black: signal-

Index	DMWY-5	DMWY-10		DMWY-20	DMWY-30	DMWY-50	DMWY-100	DMWY-200
Measuring range/(mm)	0-5	0-10		0-20	0-30	0-50	0-100	0-200
Full scale output(ue)	3000	4000		6000	6000	6000	8000	8000
Calibration coefficient (mm/ue)	0.00125	0.002		0.0025	0.00375	0.00625	0.0125	0.025
Bridge resistance()	350ohm
Overall size	Ø25*70		Ø25*80	Ø25*106	Ø25*136	Ø25*195	Ø25*345	Ø32*445
Net weight	0.6		0.8	1.0	1.5	2.0	3.0	4.5
Measuring reaction force	0.8-1.2		1.0-1.5	1.5-2.0	1.8-2.5	2.0-3.0	3.0-4.0	4.0-5.0
Applications	Surface strain or crack width				Displacement
Accuracy	0.5%
Temperature range	-35-70 degree C
Amplifier sensitivity	2.0
Bridge voltage	<=10v
Humidity range	90%RH
Bridge type	Full bridge, stainless steel made, temperature compensation
Extended cable length	Customized
Dynamic response frequency	<50hz
