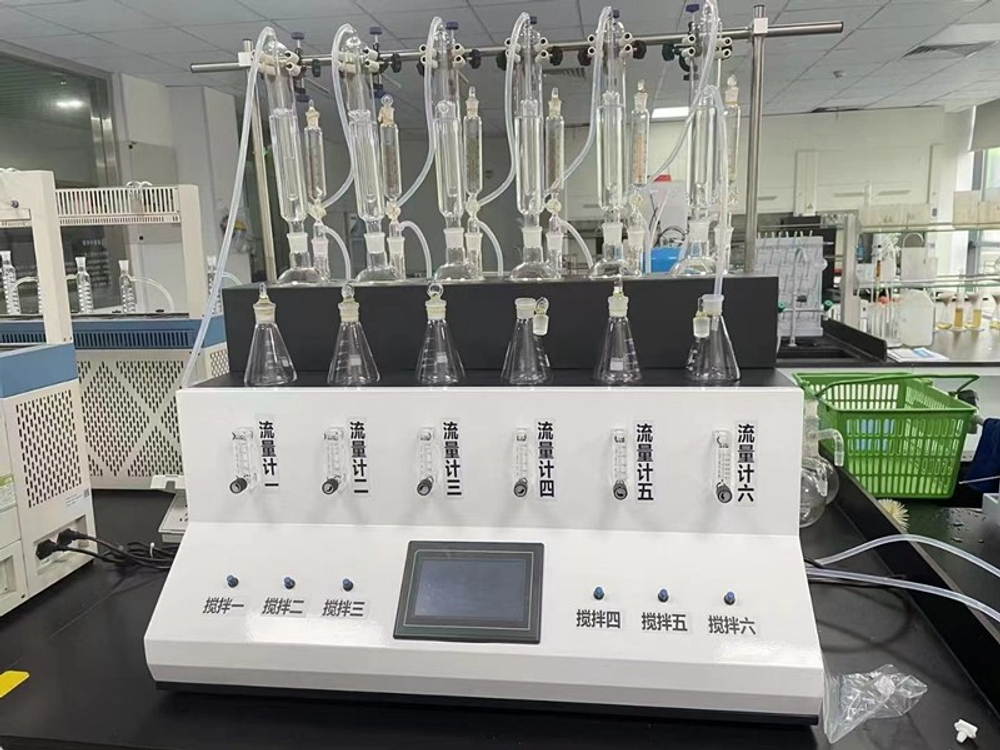

This apparatus is used to determine the residual amount of sulfur dioxide in processed slices after sulfur fumigation.
Main Features
1. Adopting sealed infrared ceramic heating sleeve, good heat collection, high heating efficiency, and can prevent equipment damage caused by liquid leakage.
2,Full touch screen control, human-computer interaction interface, easy to operate and control.
3,Heating device independent temperature control, heating power adjustable.
4,Heating countdown function, buzzer reminder, automatically stop heating.
5,External cooling water circulating machine (built-in optional), no external tap water cooling.
6,Automatically determine the distillation end point;
7,Automatically turn on and off condensate;
8,Configure an independent precision nitrogen flow control system. And can be equipped with a nitrogen generator.
Technical Specification of sulfur dioxide distillation apparatus
| Model | ZL-SD-6 |
| Display method | LCD touch screen |
| Heating method | Far infrared ceramic heating (no open flame heating, low power consumption and high efficiency) |
| Nitrogen blowing control | The main engine is equipped with a total nitrogen interface, and the nitrogen flow rate of a single hole can be controlled separately by a flowmeter |
| Cooling method | External cold water cooling mechanism |
| Temperature control | Built-in micro-boiling heating control system, temperature control range 0-200℃ |
| Number of distillation units | 6 set |
| Distillation flask specifications | Standard: 1000ml flask |
| Receiving bottle specification | Standard: 100ml×6 conical bottle |
| Rated power | 2450W |
| Rated voltage | 220V/50HZ |
| Overall dimension（mm） | 930*520*850 |
| Leakage protection device | have |
| Dry-burn resistant design | have |
| Scope of application | It is suitable for pre-distillation treatment of sulfur dioxide residue in food samples and Chinese medicine slices |
Configuration List
1.A set of qualification certificates 2. One Host machine；
3. A set of 6 flasks 4.A set of 6 Conical bottle
5. A set of refrigeration equipment 6. Other Standard configuration
