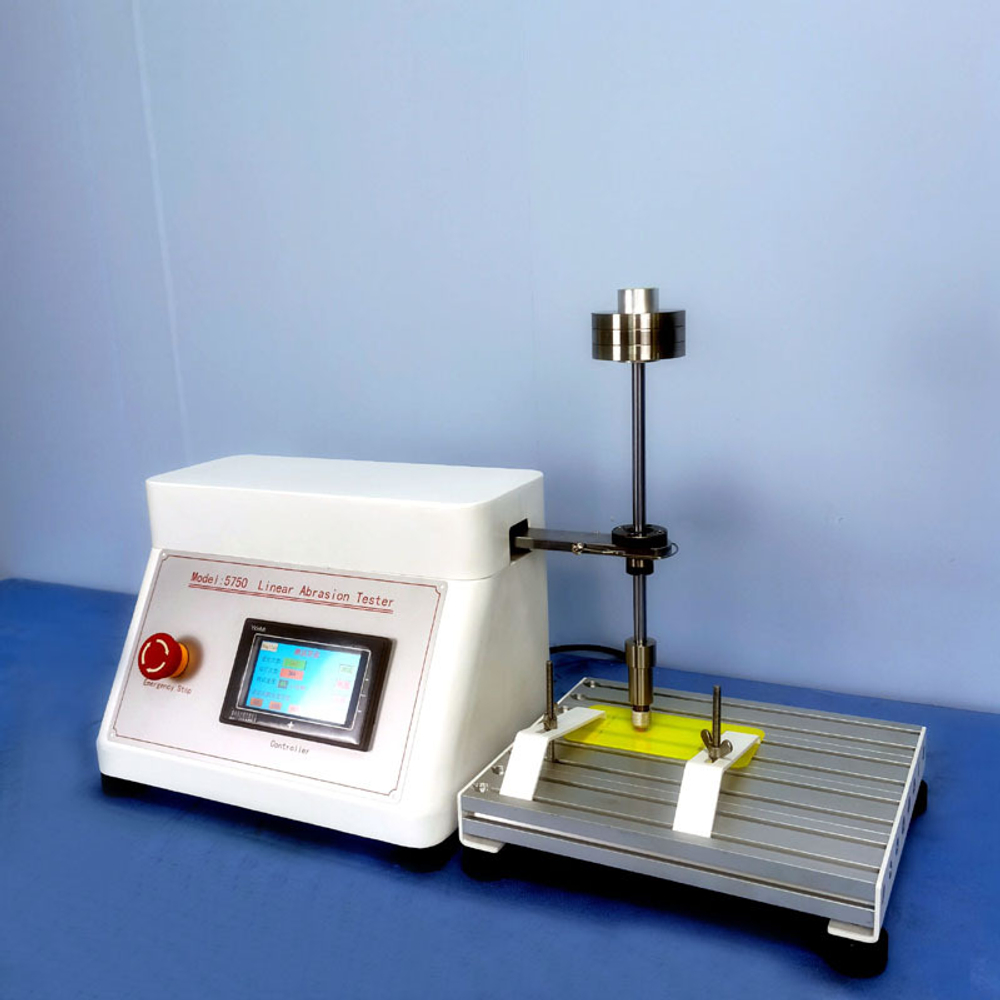

TABER 5750 linear abraser

Model: NM-5750

Standards

ASTM D-6279 ASTM D-2197 ASTM D-5178 ASTM F1319 AATCC 8 EN 2267-010 EN 3745-503

ISO 165 ISO 105-X12 ISO 6722

Introduction

The Taber 5750 linear abraser is suitable for testing the abrasive resistance of plastics, auto parts, rubber, leather and textile, electroplating, painting, printing patterns and other products. It can be used not only to evaluate the abrasion resistance of products, but also to evaluate the scratch resistance (single or multiple scratches) and color transmission of products. Both dry abrasion test and wet abrasion test can be conducted. It can test samples of any size or shape, and is ideal for wear test of products with profile surface and polished surface characteristics (such as computer mouse and other computer or IT product plastic finish wear resistance test).

Specifications

Test lifting rod: inlet lifting rod (not rotating)

Test object: coating, plating or other surface treatment

Applicable substrate: plane and arc

Friction probe: rubber, alcohol, steel wool, wool felt

Moving stroke: 0.5 “, 1”, 2 “, 3” and 4 “(other strokes can be customized)

Moving speed: 1-100 times/minute, digital display, direct input

Setting times: 0-999999 times

Display mode: touch screen

Deadweight of lifting rod: 350g

Optional weights: three 250g, one 50g and one 100g (stainless steel)

Test platform: 240 * 280mm

Boundary dimension: 460 * 230 * 330MM (excluding platform)

Machine weight: 15KG

Standard Configurations

Test weights: 250g 3pcs, 100g 1pc, 50g 1pc

Test platform 1pc

Power cable 1pc

Test platform(optional)

Abrasive materials(optional)
