Standards
CNS-3309,6483,8540, JIS-A1453,K6902,L6911,K7204,L1096, ASTM41175,D1044,DIN-53754,53799,53109,52347,TAPPI T47TA-63

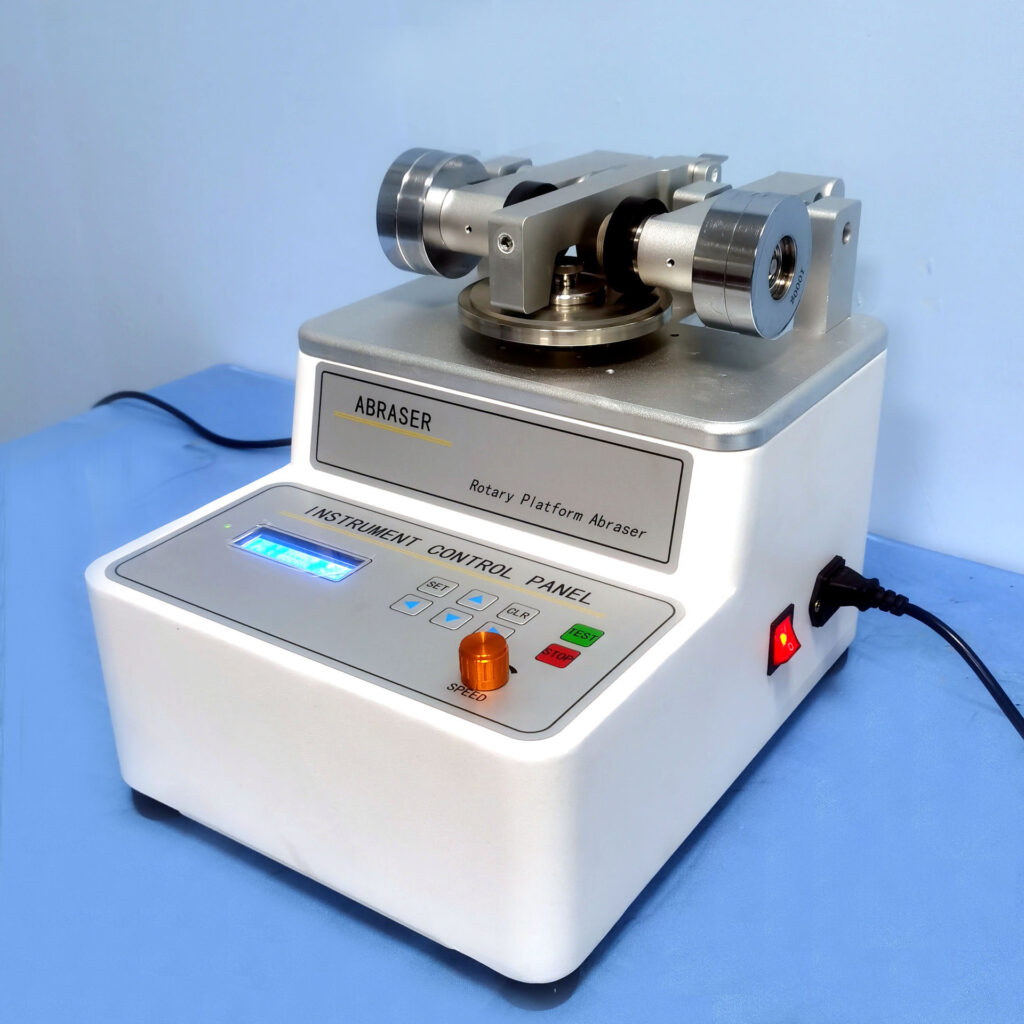

The TABER Rotary abraser is suitable for the abrasion test of cloth, paper, paint, plywood, leather, floor tiles, glass, natural rubber, etc. It’s available in single head dual head two type.
Specification
| Model | NM-802A(Single head) | NM-802B(dual-head) |
| Test piece | outer diameter 100mm, inner diameter 6.5mm, thickness 3mm | outer diameter 112.8mm, inner diameter 6.5mm, thickness: 3mm |
| Abrasion wheel outer dia. | 51.8mm | 51.8mm |
| Abrasion wheel gap | 52.4mm | 52.4mm |
| Rotation speed | 10-100rpm | 20-72rpm (adjustable) |
| Counter | 0-999999, LCD display | 0-999999, LCD display |
| Load | 250g, 500g, 750g | 4 for each 500G and 1000G |
| Swing arm weight | 250g | 250g |
| Test station | 1 | 2 |
| Machine size | 40× 28× 29cm | 54 × 280× 35cm |
| Machine weight | 20kg | 40kg |
| Power supply | AC220V 50HZ, 40W | AC 220V 50Hz 5A, 80w |
Standard Configurations
1 horizontal bubble
Hexagon wrench 1 set
One pair of 500g counterweights
1 long handle hand brush
1 pair of 1000g counterweights
1 power cord
1 tool box
1 vacuum cleaner
Optional accessories
CS-17 or CS-10, CS-10F grinding wheel
CS-0 rubber wheel
H-18 or H-22 grinding wheel
S-42 sandpaper strip
S-33 sandpaper strip
