Standards: ASTM D4781, ASTM D4164, ASTM B 527, ISO 787-11, ISO 3953

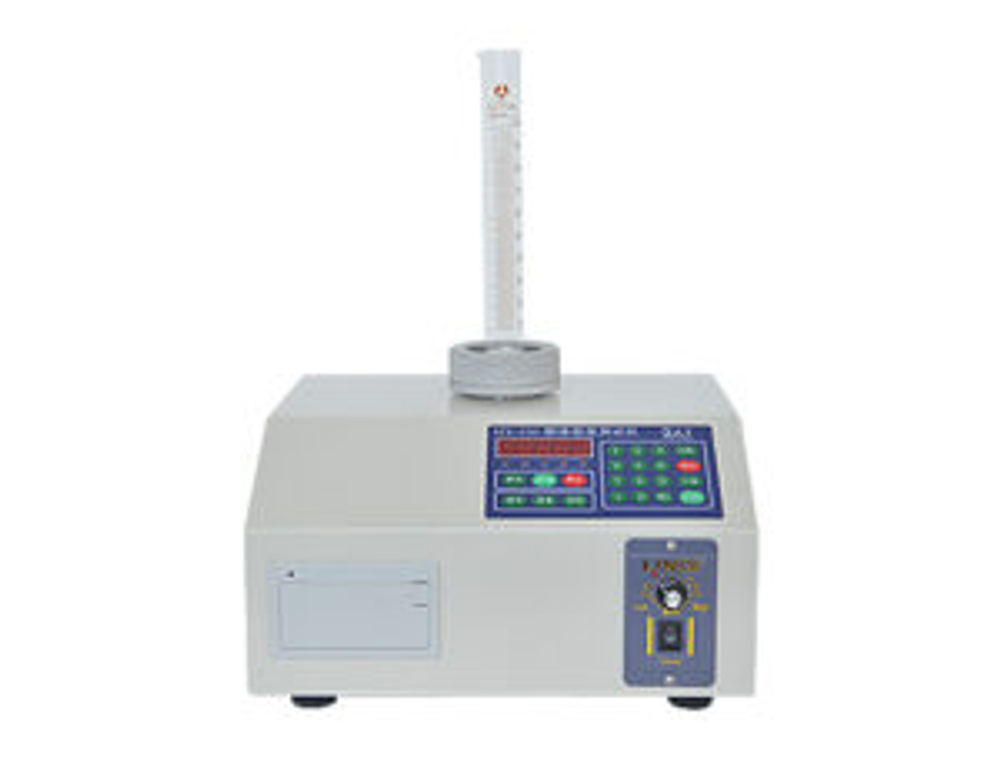

This Tap powder density tester is composed of adjustable speed motor, vibration components, microcomputer and micro printer. The amplitude and the number of vibrations can be freely set. During the vibration process, the vibration component rotates at a small angle to ensure the uniformity of the material. With functions of automatic calculation and automatic printing of test results.
The Powder density refers to the mass corresponding to a unit volume of powder. Due to the existence of voids (or pores) between or within the particles in the powder, the density of the powder is usually less than the true density of the corresponding substance. Tapped density refers to the density of the powder contained in the container after being tapped under specified conditions.
Specifications
| Model | Powden-100 | Powden-100A | Powden-100B |
| Number of sample measurements | 1 | 2 | 3 |
| Vibration amplitude | 1-15mm | 1-15mm | 1-15mm |
| Vibration frequency | 0-300 times per min | 0-300 times per min | 0-300 times per min |
| Single time vibrations number | 0-99999 adjustable | 0-99999 adjustable | 0-99999 adjustable |
| Cylinder Specifications | 25ml,50ml,100ml,250ml | 25ml,50ml,100ml | 25ml,50ml,100ml |
| Repeatability error | ±1% | ±1% | ±1% |
| Accuracy | ±1% | ±1% | ±1% |
| Result output | Built-in printer | Built-in printer | Built-in printer |
3 station tap density meter 2 station tap density meter
