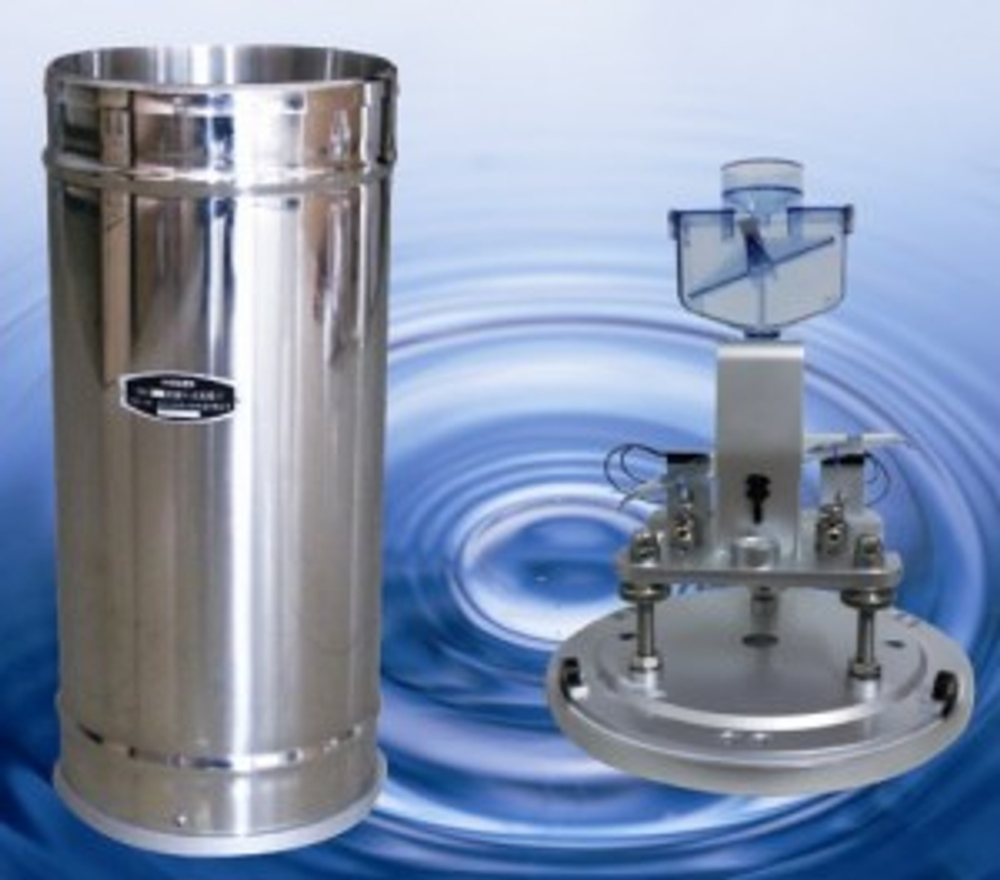

Tipping-Bucket Rain Gauge, Hyetometer

Model: YLD-01

Standard: GB/T11832-2002

Features

Streamlined design of the tipping bucket, more smooth tipping, easy cleaning

Precision double bucket type, regular cleaning and maintenance of the bucket and the funnel

The bucket dip angle has been set well before delivery, no need further adjustment when using

Technical Specifications

1. Receiving opening dia.: φ200₀^0.60mm; edge angle: 40~45 degree
2. Resolution: 0.2mm
3. rain measuring range: 0.01mm～4mm/min（max allowed rainfall 8mm/min
4. Measuring accuracy: ≤±3%
5. Way: two way reed switch signal output
6. Working temperature: -10℃~50℃,relative humidity; <95%(40℃)
7. Overall dimension: φ216mm×460mm
