Model: FZ-183
Standards: GB/T 18830, AATCC 183, AS/NZS 4399, BS 7914, PREN13758

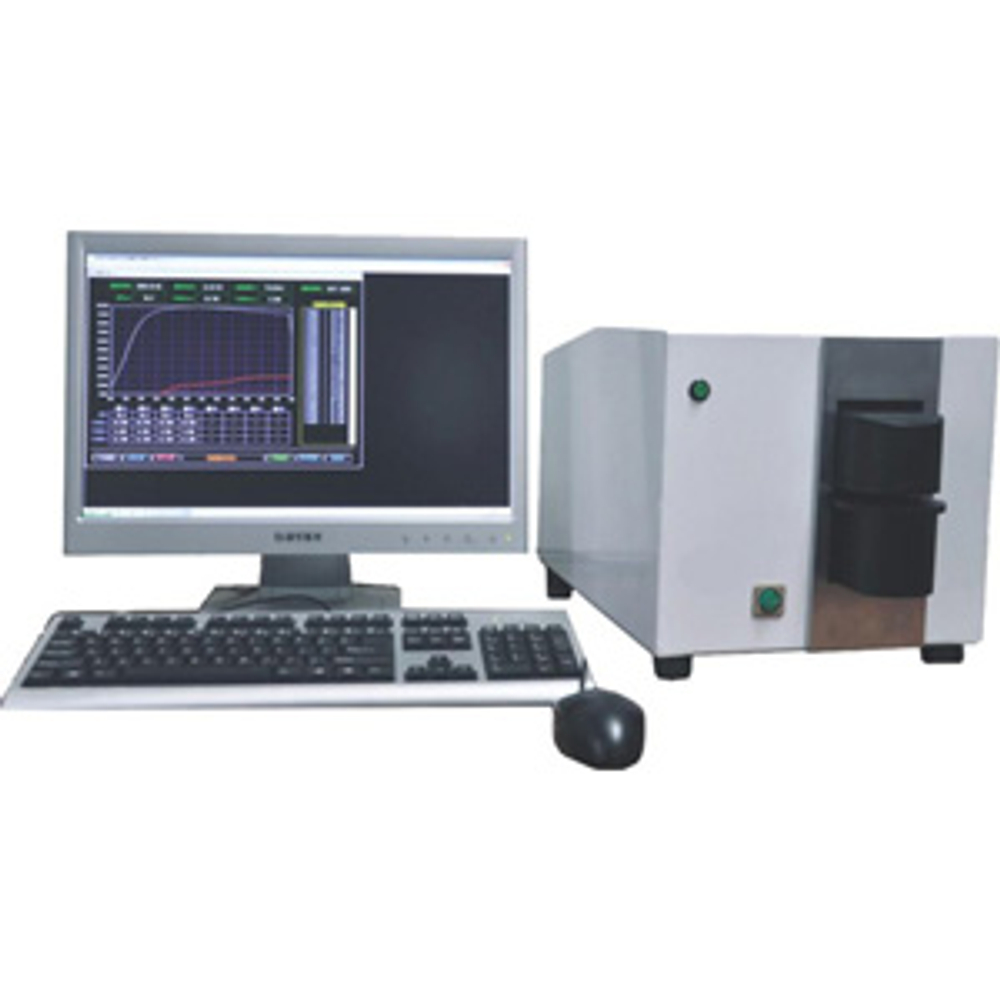

This tester is used to determine the ultraviolet radiation transmittance or blocking of textiles fabrics, it can directly test the textiles fabric ultraviolet radiation protective factor UPV.
Features
- HERARUS lamp, built in Integrating sphere spectrophotometer, wavelength automatic scan, wide measuring range, high test accuracy
- Ultravilolet optical sensor, can test Fluorescent sample
- Fully computer control, automatic data processing, multi diagraph, report statistics, analysis, storage, output.
Technical specifications
| measuring range: through rate | 0-100%±0.01%, UPF:0-100 | |
| Wavelength range | 280-400nm±0.5nm | |
| Wavelength repeatability | 0.25nm | |
| Data interval | 1nm-5nm adjustable | |
| Slit width | <=5nm | |
| Optical system | 0/d | |
| Sample optical beam dia. | 10mm | |
| Power supply | AC 220V, 50hz, 100w | |
| Overall dimension | 310*500*300mm | |
| Net weight | 20kg | |
