Model: LQ-1S
Description

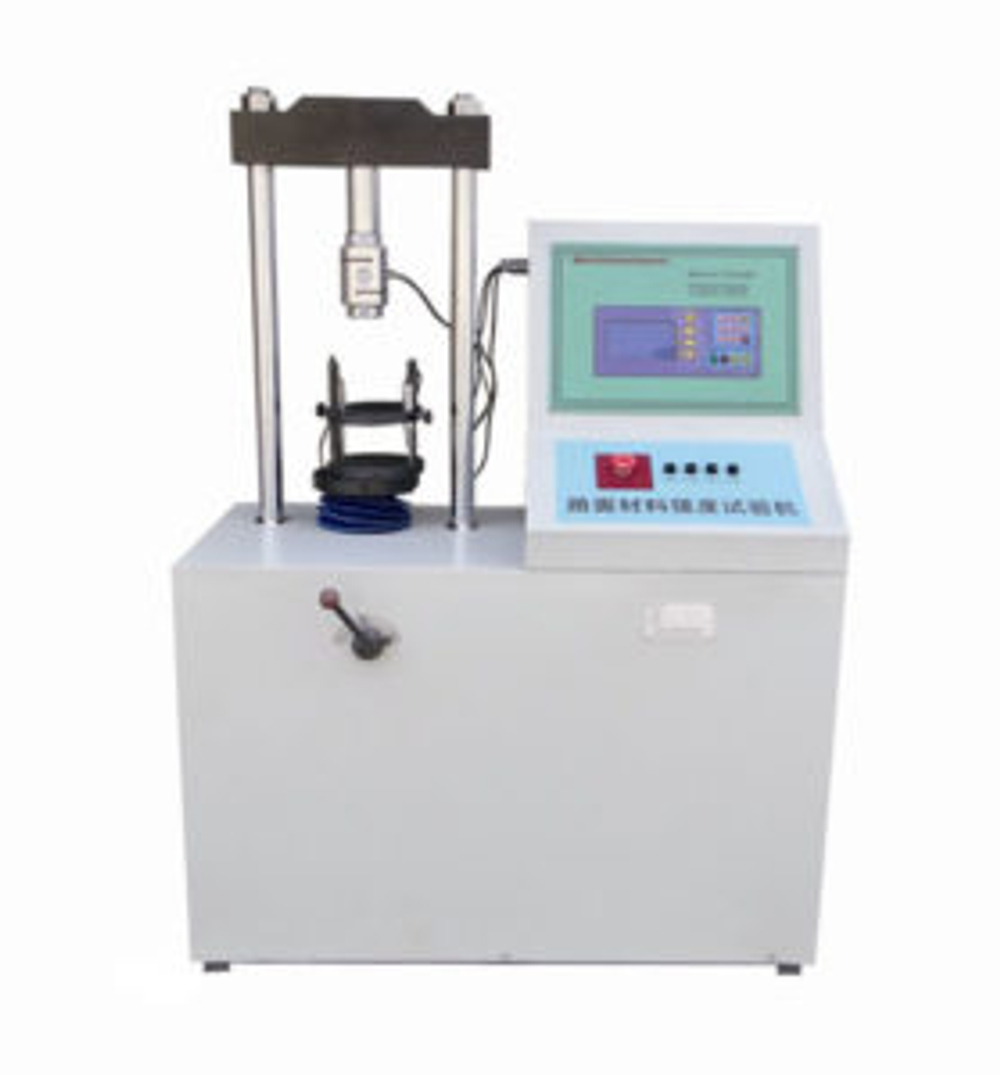

This tester is kind of a multifunctional testing equipment for civil engineering laboratory, it can be used to perform the compression test, flexural test, CBR test, Marshall stability test.
Features
Intelligent measuring & control technology, sensor force measuring, digital display
Overload & limit protection
Easy operation, stable performance
Can storage 15groups test records
Can do UCS, CBR, Marshall stability, Compression, flexural
Has fast & low speed test modes
Micro printer can be equipped
Technical Specifications
| Max. load | 0-100KN,0-30KN |
| Load resolution | 0.01KN |
| Accuracy | ±1% |
| Max. Vertical stroke | 200mm |
| Deformation measuring range | 0~15mm |
| Elevation speed | High 50mm/min, low: 1mm/min |
| Manual elevation speed | 1/6 mm per cycle |
| Rating of machine | JW7134 550W, 380V, 1400RPM |
| Overall dimension | 1200x700x1450mm |
| Net weight | 120kg |
