Model: CT-UV
Application

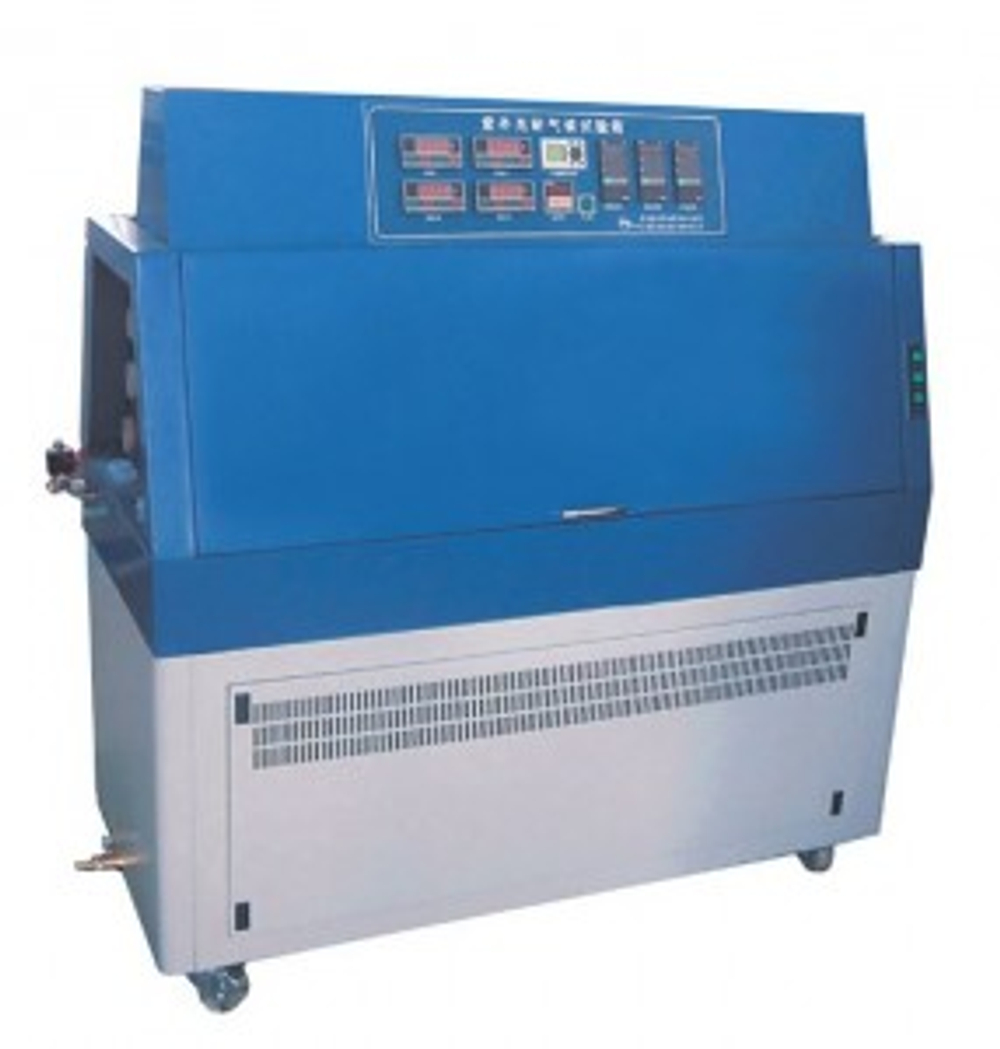

The UV climatic testing chamber uses fluorescent light UV lamp as the light source, through simulating the UV radiation and condensation in natural sunlight to perform accelerated climatic test on materials. It can simulate UV, raining, high temperature, high humidity, condensation, black, and can autorun cycle index.
Standards
GB/T14522-93, GB/T16585-1996, GB/T16422.3-1997, ASTM D4329,D499,D4587,D5208,G154,G53, ISO 4892-3,ISO 11507,EN 534,PREN 1062-4, BS 2782,JIS D0205, SAE J2020
Technical Specifications
| Testing chamber size | 450×1170×500mm |
| Overall size | 580×1280×1450mm |
| Temperature range | RT＋10 ～70 |
| Humidity range | 90～98%R·H |
| Temperature uniformity | ±2 |
| Temperature fluctuation | ±0.5 |
| Temperature mode | PID self tunning mode |
| Lamps center distance | 70mm |
| Sample and lamp surface distance | 50mm |
| Standard specimen size | 75×150mm,75×300mm(or tailor made) |
| Trough water depth | 25mm automatic control |
| Effective radiation area | 900×210mm |
| Lamp wavelength range | UV-A 315-400nm, UV-B 280-315nm |
| Testing period | 0～999h adjustable |
| Blackboard temperature | 40 ～65 |
| Working mode | UV light, condensation time alternate adjustable |
| Ambient temperature | 5 ~ 32 |
| Ambient humidity | ≤85% |
| Power supply | AC 380(±10%)v/50hz, 3phase, 4wire |
| Capacity | 5kw |
