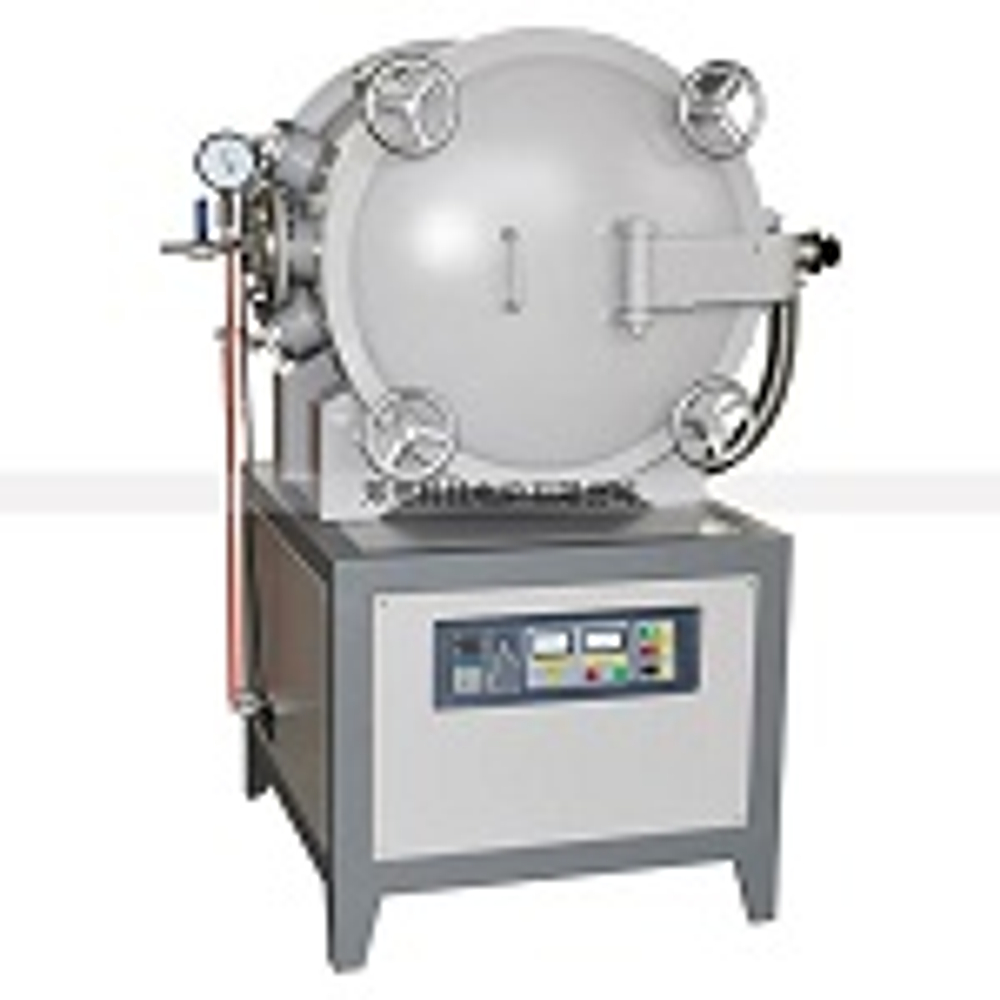

Model: ZLXS-1700
Description
This vacuum cabinet type sintering furnace is ideal equipment for atmosphere sintering, atmosphere reduction test in lab.
Features
Heating element: quality silicon molybdenum rod
Structure: 3-layer
Temperature control system: PID 30, phase shift trigger, silicon controlled control
Hearth material: aluminium oxide polycrystalline fibre
Air cooling system between internal & external system
External whole sealing, cover and furnace gate use high temperature silica gel O ring
Water cooling system at furnace door
The KF25 interface can connect with vacuum pump
Can connect with H2, Argon, N2, O2, CO, ammonia decomposition or other protection gas
Atmosphere sintering, atmosphere reduction
Compact size, uniform temperature, fast temperature raise & drop.
Technical specifications
| Hearth size | 300x200x200mm |
| Normal working temperature | 1600℃ |
| Highest temperature | 1700℃ |
| Temperature control | 30 stages programmable control（or LCD touch screen display） |
| Temperature accuracy | ±1℃ |
| Temperature control protection | Over temperature and thermocouple protection function |
| Heating element | Quality silicon molybdenum rod |
| Working voltage | AC 220V, 50HZ or customized |
| Power supply | 6KW |
| Temperature test element | B type thermocouple |
| Net weight | 400KG |
| Furnace structure | Vertical, horizontal, integrated, split |
| Door open mode | Side open, upper open, lower open, side slip |
| Standard accessories | Crucible tongs, high temperature glove, thermocouple, gate plug |
