Description

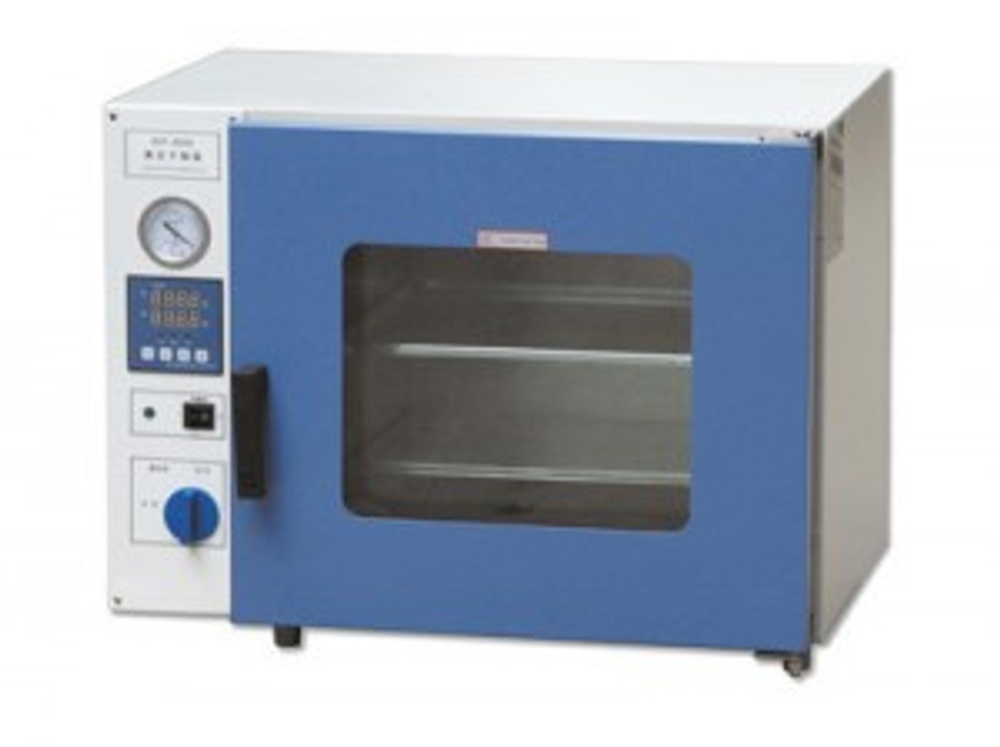

The vacuum drying oven is suitable for drying, sterilization, heating process in laboratory. It is specially designed for materials which is heat sensitive, easy to resolve, easy to oxidize, inert gases can be filled in, some complicated materials also can be dried quickly. It’s kind of very common laboratory heating equipment.
Features
1. Rectangular solid working chamber, to maximize the effect volume, also with intelligent temperature controller.
2. Glass window makes it easy to observe the inside.
3. The cabinet door tightness is adjustable, the silicon rubber door seal ring can guarantee high degree vacuum.
4. Working chamber is made of cold-roll steel plate or stainless steel sheet, durable in use.
5. Can lower the drying temperature(low pressure, low temperature)
6. It can protect some materials from being oxidized when heating if there is air inside.
7. Protect the biological cell from being killed when heating.
8. Dust free
Technical specifications
| Model | DZF-6030A(chemistry) | DZF-6030B(biology) | DZF-6032(Biology) |
| Power supply | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| Input power | 400W | 250W | 1400W |
| Temperature control range | RT+10-250℃ | RT+10-250℃ | RT+10-250℃ |
| Constant temperature fluctuation | ±1% | ±1% | ±1% |
| Vacuum degree | <133Pa | <133Pa | <133Pa |
| Inner size | 320×320×300mm | 320×320×300mm | 415×345×370mm |
| Overalll size | 610×450×460mm | 610×450×460mm | 720×500×510mm |
| Splitter | 1 | 1 | 2 |
| Chamber material | Stainless steel(1G18rNi9Ti) | Stainless steel(1G18rNi9Ti) | Stainless steel(1G18rNi9Ti) |
