Описание

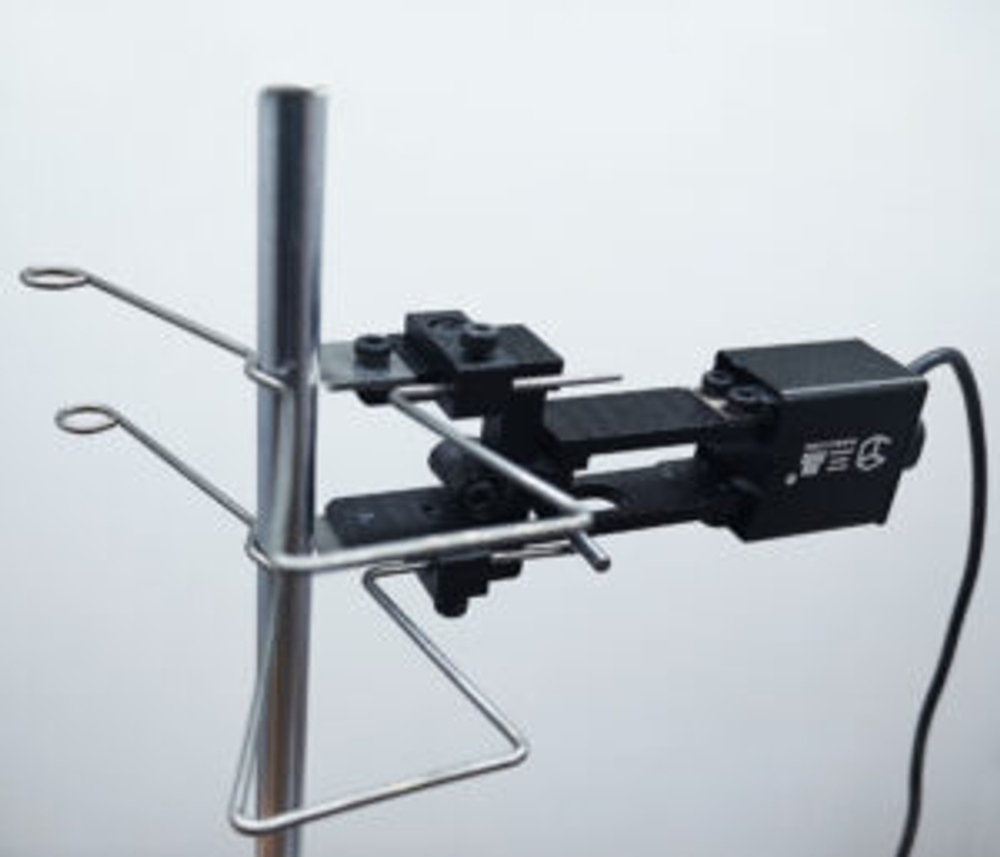

The variable gauge length extensometer is mainly used for axial deflection testing, such as elastic modules E, specified non-proportional extention lengthRpxx, total extention lengthRtxx, specific elongation, strain hardening exponent n and so on.
Specifications
| Model | YB30/5 |
| Gauge length | 10-30mm |
| Maximum deflection | 5mm |
| Strain gage resistance | 350Ω |
| Bridge voltage | ≤5V (direct current or alternating current) |
| Output sensitivity | about 2.5 mV/V |
| Output interface | USB(select by request) |
| Clamping method | torsional spring clamping |
| Model | YB50/5 |
| Gauge length | 10-50mm |
| Maximum deflection | 5mm |
| Strain gage resistance | 350Ω |
| Bridge voltage | ≤5V (direct current or alternating current) |
| Output sensitivity | about 2.5 mV/V |
| Output interface | USB(select by request) |
| Clamping method | elastic or torsional spring clamping |
| Model | YB50/12.5 |
| Gauge length | 25-50mm |
| Maximum deflection | 12.5mm |
| Strain gage resistance | 350Ω |
| Bridge voltage | ≤5V (direct current or alternating current) |
| Output sensitivity | about 2.5 mV/V |
| Output interface | USB(select by request) |
| Clamping method | elastic or torsional spring clamping |
| Model | YB100/10 |
| Gauge length | 20-100mm |
| Maximum deflection | 10mm |
| Strain gage resistance | 350Ω |
| Bridge voltage | ≤5V (direct current or alternating current) |
| Output sensitivity | about 2.5 mV/V |
| Output interface | USB(select by request) |
| Clamping method | elastic or torsional spring clamping |
| Dimension | 120mm*15mm*135mm |
| Weight | 53g |
