Model: RS-1210
Standards: ISO1210, ASTMD6413, CFR1615/1616, GB/T5456, GB/T13488, GB/T13489, GB/T2408

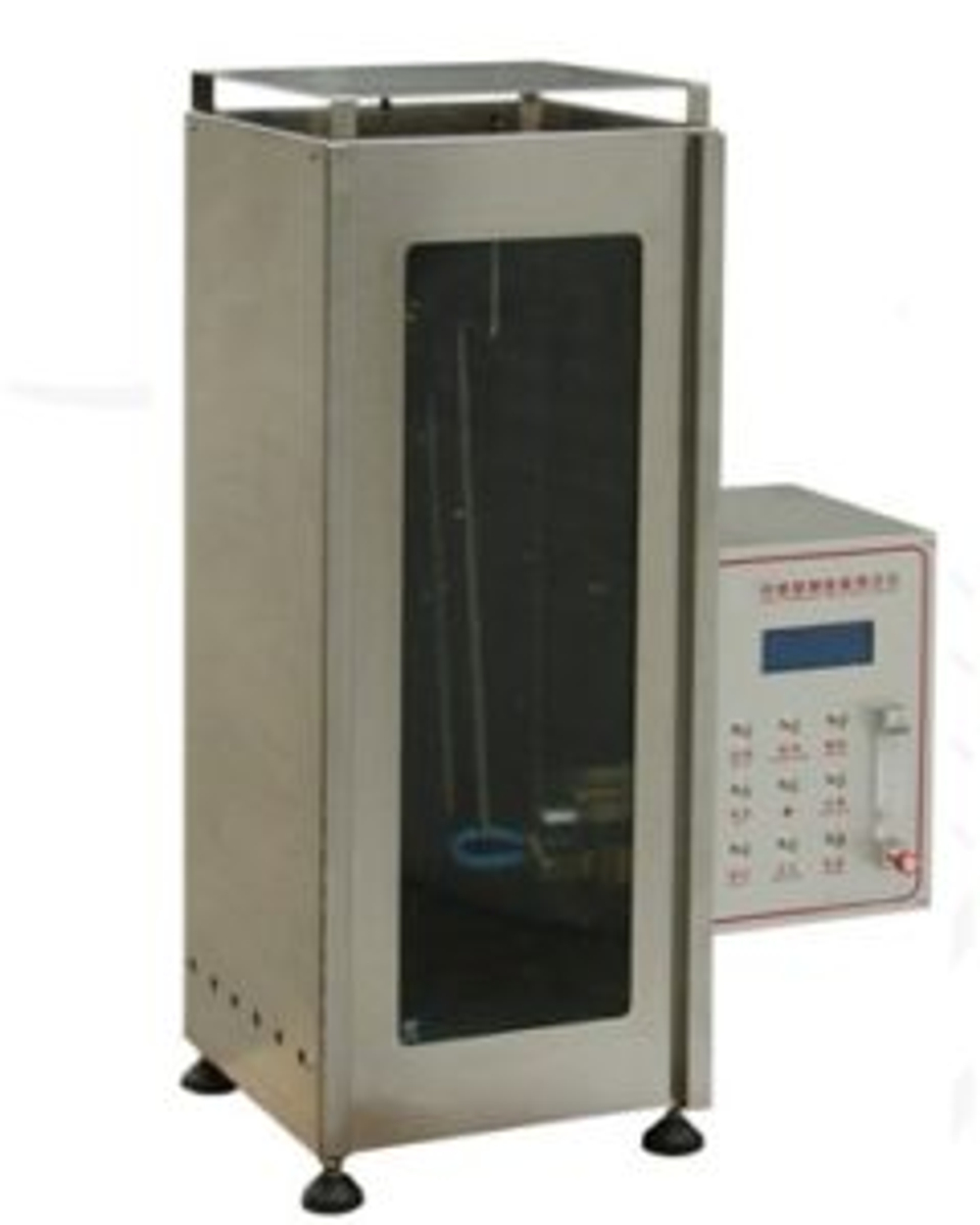

This flammability chamber is used to determine the burning behaviour of woven fabrics, knitted fabrics, coated product, laminated products, plastics subjected to vertical fire.
Features
Foreign SUS made
Rotor flow meter to adjust the flame height
Heat proof glass observation door
Foreign made gauges, metal keypress
Foreign made motor and reduction box
quality control test equipments manufacturer and supplier
Technical specifications
| Temperature indication range | 0~90±1℃ |
| Burning continuous timing range | 0~999.9s, resolution 0.1s |
| Smoldering timing range | 0~999.9s, resolution 0.1s |
| Ignition time | 0~999s freely set |
| Temperature error | ±1℃ |
| Flame height | 40±2mm |
| Record test times range | 0~30 times |
| Ignitor tube internal diameter | 11mm |
| Distance between Ignitor top to the sample | 17mm, angle: 25 degree |
| Sample clamper | 1set |
| SUS clamper | 4pcs |
| Weights | (54.5g,113.6g,226.8g,340.2g,453.6g)one each |
| Overall size | 525×355×800mm(L×W×H) |
| Net weight | 35Kg |
