Model: ZY-4
Description

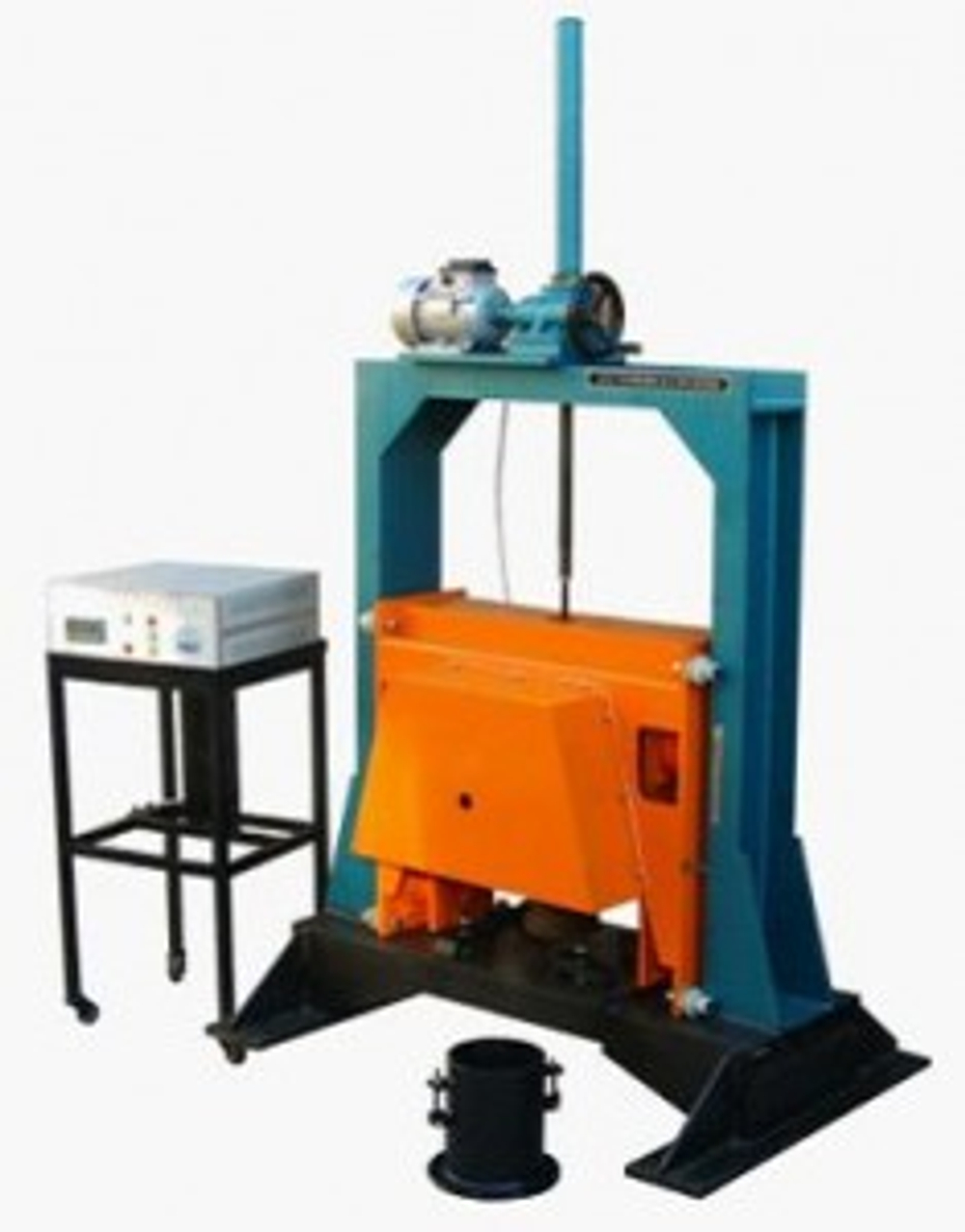

The vibration compaction forming machine is Used in road laboratory for aggregate research and preparation, it’s designed and made by complies to the JTJ052—2000 and AASHTO standards.
Features
High compacting density and good compacting effect, also won’t break the grading.
Free set of vibrating frequency and vibratory power
Free change of static pressure
Free change of compacting time
Imported inverter and high reliability vibration parts adopted
Lateral force cancelled out, reduce shake, reduce noise and body vibration
Compaction displacement indication
Improved structure design, reduced the body resonance
Compaction displacement scale indication
Technical specifications
| Vibration frequency | 28~30Hz (0~30hz adjustable) |
| Vibratory force | 6800~6900Kg(0-10000N adjustable) |
| Static pressure | 0~1900n |
| Vibrating time | 0~10mins |
| Suitable mould | Φ152 ×150mm, 400×100×150mm or others( tailor made) |
| Power supply | AC 380V/50HZ, 1.5KW |
| Overall size | 1150×760×1700mm |
| Weight | 450kg |
| Vibration device lifting mode | Automatic/manual |
| Vibration mode | Dual-shaft eccentric vibration |
| Exciting force control mode | Variable frequency |
