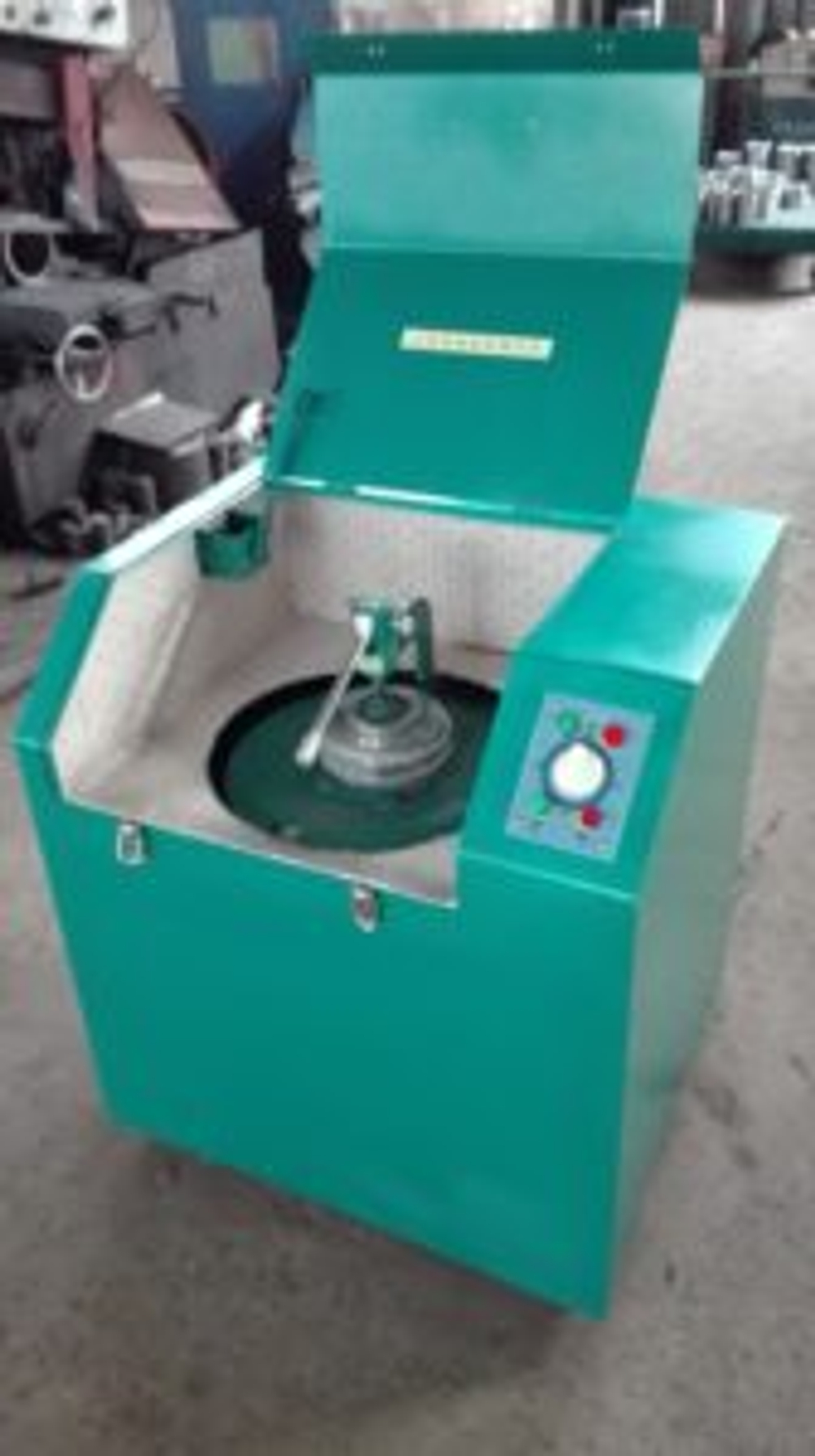

This vibratory mill is a grouped equipment for X ray Fluorescence Spectrometer. Features easy operation, high efficiency, less noise, no leakage, unique suspension structure can increase the horizontal direction force to improve the grinding efficiency, and reduce the vertical force to reduce machine noise.
Technical specifications
| Model | ZDM-1A | ZDM-1B | ZDM-1T | ZDM-1V |
| Features | 1 speed 1 container | 1 speed 1 container | 2 speed 1 container | Variable speed 1 container |
| Feeding size | ≤10mm3 | |||
| Output size | ≤80um（or 200mesh） | |||
| Container volume | 100 cm3 | |||
| Feeding capacity | 10~ 30cm3 | |||
| Power supply | AC380V±10%/50Hz, 3ph | |||
| Rotation speed (rpm) | 1400 | 960 | 910,1400 2 speed | 750-1550 rotation speed adjustable |
| Rated power | 1.5kW | 1.5kW | 0.85/1.1kW | 1.5kW |
| Overall size | 650*600*960mm | |||
| Net weight | 180kg – 240kg | |||
| Container clamping way | Rapid clamping | |||
