Model: FZ-WVTR03
Standards:
ASTM E96, JISL1099, ISO 2528 BS 7209, BS 3424
Standards
ASTM E96, JISL1099, ISO2528 BS 7209, BS 3424

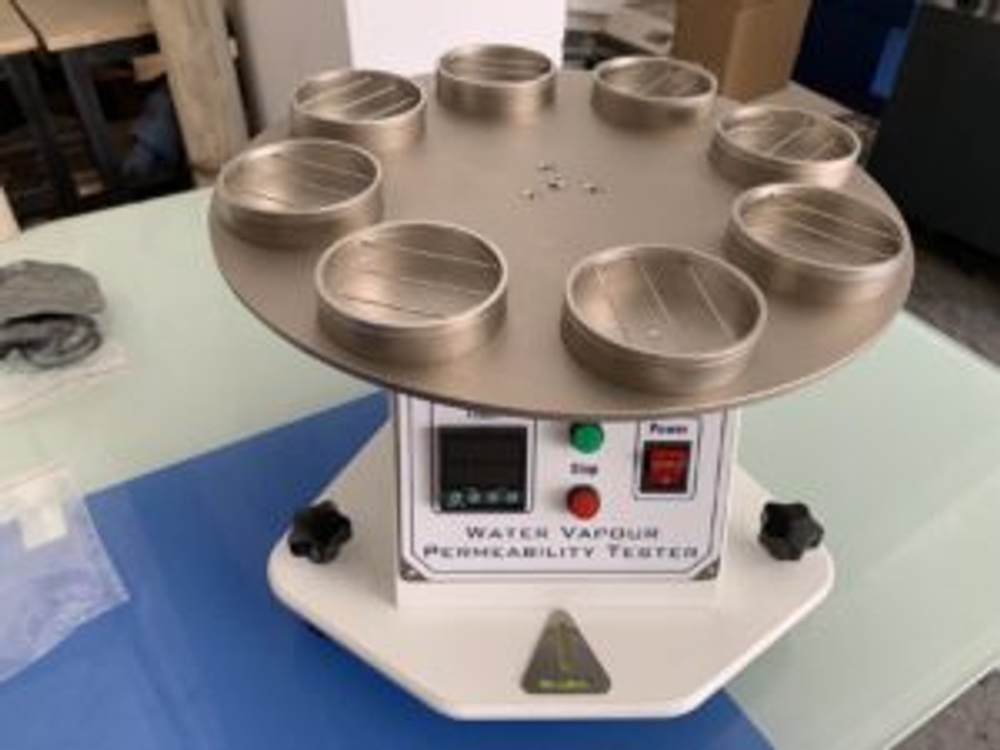

This machine is specially used for determine the water vapor permeability of textiles and textile composite materials, especially sportswear fabrics.
Specifications
Sample: 8 pieces, diameter 96mm
Internal dimensions of the test vessel: diameter 83mm, depth 18.5mm
Test dish combination weight: 120g~150g/group (containing water)
Test vessel filled with water: 46cm ^ 8
Distance between water surface and sample: 10 ± 1mm
Rotary table: made of aluminum, with a center circle diameter of P.C.D 305mm when placing the test dish
Rotary table speed: about 2r/min
Test time: settable
Timer: LCD display 0~9999h can be set
Volume (WxDxH): 44x53x33cm
Weight (approximately): ≈ 20Kg
Power supply: 1 Å AC 220V 3A
