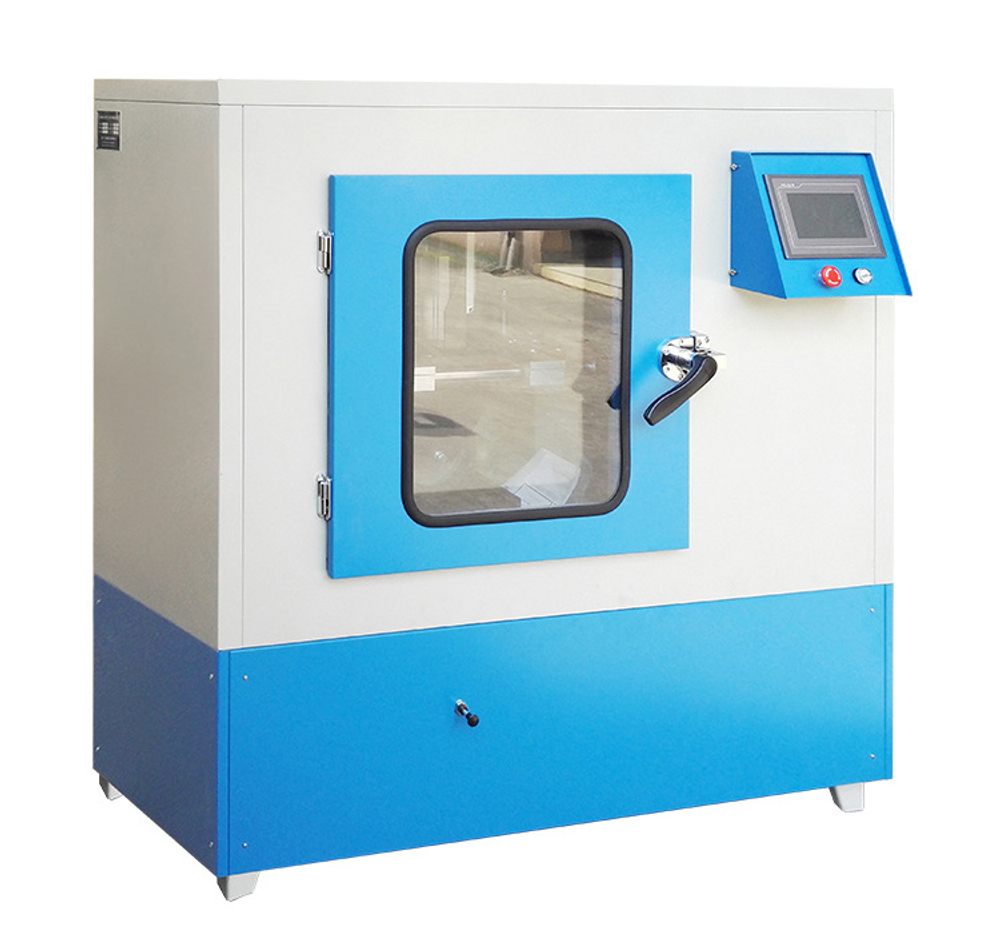

Model: WRT0719
Description
The wheel rutting tester is used to determine the road asphalt mixture wheel-rutting resistance under high temperature, also it can test the asphalt mixture stability under high temperature at field. It’s kind of very common asphalt testing instrument.
Main features
Floor type, PC control, automatic temperature control, automatic timing, real-time display of rutting displacement, automatic recording of displacement graph, test report print.
Synchronous graphical indicating of time & displacement, time & temperature
PWM method for temperature control, high temperature stability, absolute temperature sensor acquisition, no temperature drift in on time test
High definition A/D, D/A module guarantee accuracy of displacement and temperature measuring; external cycling heating guarantee uniform temperature in the constant temperature chamber.
Technical specification
| Sample size | 300mm×300( or 150)mm×(50~100)mm |
| Working mode | crank connecting rod to drive the test bed |
| Wheel Rubber hardness | 78±2 (standard hardness) when at 60℃ |
| Test-wheel move distance | 230mm±10mm |
| Back and forth rolling speed | (42±1)time/min( single trip) |
| Contact pressure | 0.7MPa±0.05Mpa /60℃ |
| Displacement measuring range | 0mm~130mm |
| Displacement measuring accuracy | <0.01mm |
| Rutting test time | 45-240mins |
| Constant temperature control range | RT~80℃ freely set, ±0.3℃ |
| Deformation measuring | ±0.3%, resolution is 0.005mm |
| Working power | AC(380±10%)V, 50Hz, 3kW |
| Overall size | 1315×785×1400mm(L*W*H) |
| Net weight | 500kg |
