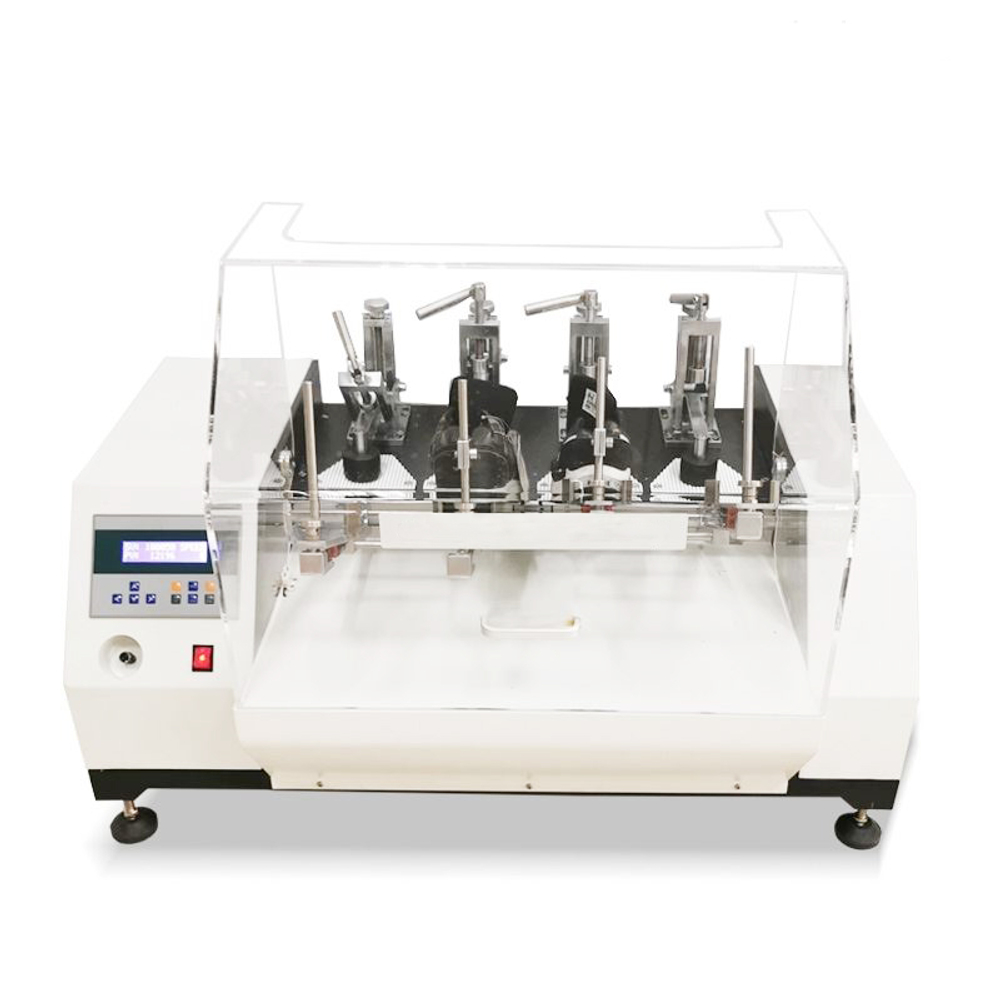

Main functions
Test finished shoes such as sports shoes, leisure shoes, work shoes, etc., after continuous bending for a long time, at a fixed frequency and at a fixed angle, evaluate their folding resistance or check their cracking degree;
Standard
SATRA TM92, ISO 20344
Features
Body surface treatment: DuPont powder and electrostatic spray painting process are adopted, which can be cured at high temperature of 200 ℃ to ensure long lasting fastness. Mechanical parts are made of non-corrosive structural aluminum and stainless steel materials; LED-SLD806 integrated display control box, menu-type operation mode;
Precision variable frequency drive motor, stable operation and low noise; One-button full-automatic test, simple and convenient operation;
Open and close protective transparent cover can protect the operator’s hands, and it also has the function of opening the cover and stopping protection sensing;
High-precision bearing, stable rotation and long service life; 4 station structure design, stable bending and high efficiency;
The front and rear fixing clamps can be adjusted, and the screw-type screw is tightly fixed; Speed adjustable, angle adjustable, movable heel fixed, size adjustable;
Specifications
Testing 2
Testing Speed 5 to ≥ 150 cpm (with speed display)
Bending Angle Adjustable from 5 degrees (min.) to 90 degrees (max.)
Allowable Sample Length 150 to 400mm
Volume 105 * 83 * 78cm
Counter LCD, 0-9999999
Motor Variable Frequency
Power Supply Single phase AC 220 V 60 Hz
Weight 210kg
Inclusions
Spanner x 1 set
Heel Clamp x 1 set
Plastic Pad x 1 set
