Model: HTS-2
Standards
《Mass concrete construction technology regulations》DB33/T1024-2005
Description

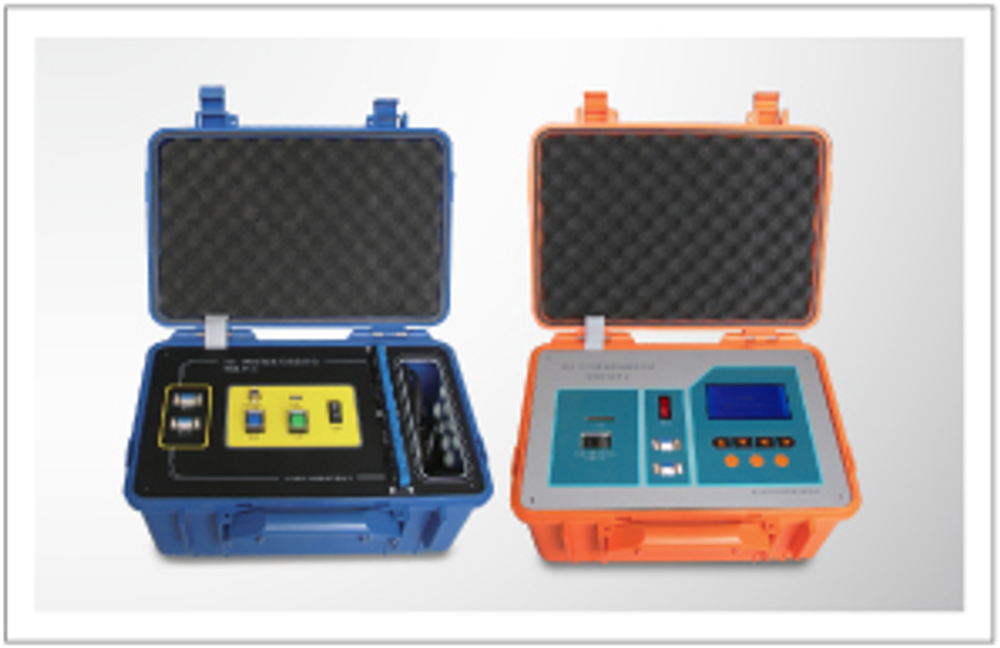

The mass concrete thermal control is important for reducing temperature cracks. The mass concrete thermal control system is used to test and monitor the concrete structure internal temperature. The system is comprised of thermal measure unit and wireless temperature control unit, the temperature measure unit can used independently.
Features
1000m distance wireless communication between wireless temperature control unit and temperature measure unit;
Remote observation of electric quantity and real temperature;
Lithium battery power for long working time;
Professional temperature regulator for calibration of remote sensor;
U disc data export;
Multiple anti-interference design assure accurate data;
Water proof design, can be used in construction field
Technical specifications
Temperature measure accuracy: ±0.3℃
Max. wireless monitor distance: 1000m
Temperature monitoring unit point: 256
Battery power: 9V
Battery for continuous working days: >15days
Standard configuration
Wireless temperature control unit: 1unit
Temperature measure unit: 1set ( Max. 16sets)
Temperature sensor: 16pcs
Antenna: 1pair
