Model: CT-XL
Standards
GB/T2423.24-1995, GB/T16422.2, GB9344, GB/T1865-97, ASTM G155-04
Description

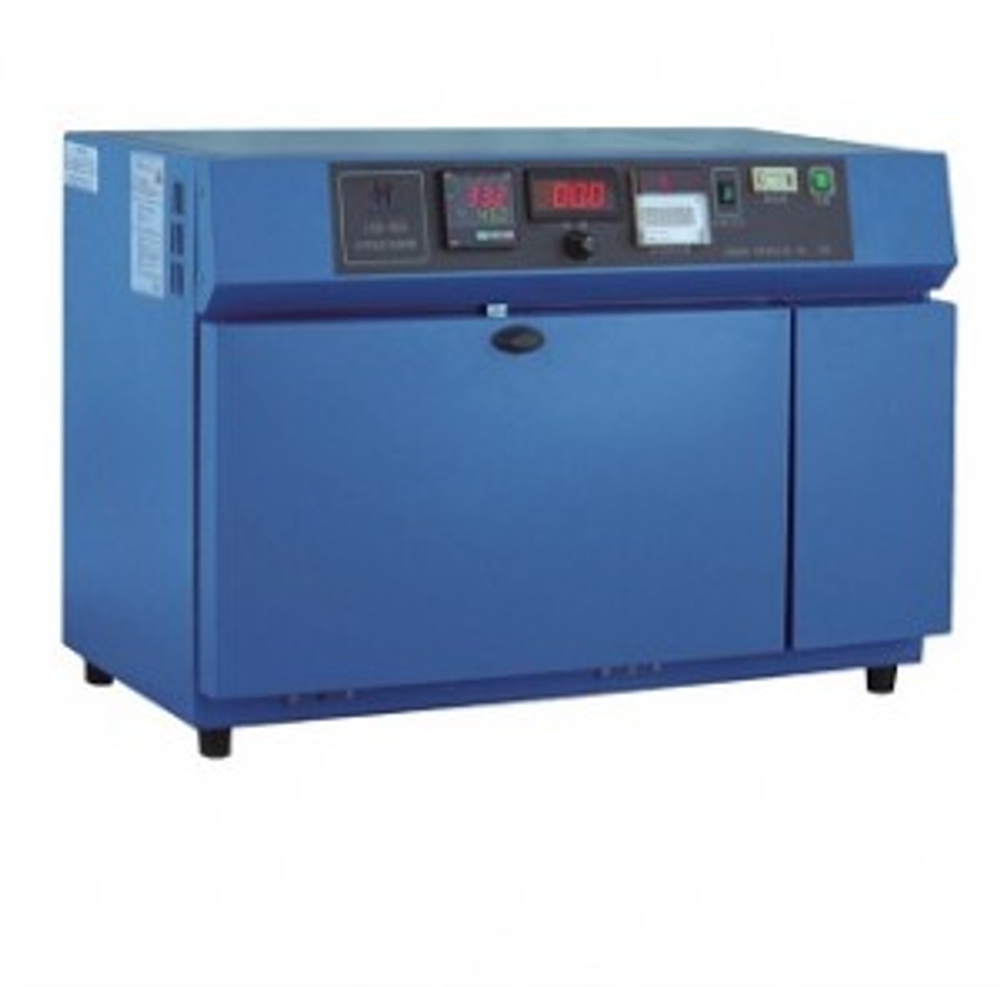

The xenon lamp climatic testing chamber is used for climatic simulation test for many different kinds of materials ( glass, textiles, rubber, plastics), thus can evaluate the change on color, gloss, flaw, foam, embrittlement, oxidation under real climatic environment. It’s widely used in different labs. The xenon lamp can simulate full spectrum of sunlight, thus can reappear destructive waveform under different environment.
Features
Enclosure made of cold rolling steel sheet with static plastic spraying, liner made of high quality mirror stainless steel, nice appearance
Accurate temperature control of blackboard, radiation and darkness period can be tailor made according to relevant standards or customer’s requirements.
Intelligent digital controller with timing function, accurate and reliable temperature control
Downward type operation door enable fast, easy, flexible sample installing
Installed with radiation transducer, which can make in-time correction if there is light energy decline caused by lamp aging or any other factors.
Technical Specifications
| Model | CT-XL025 | CT-XL025N |
| Blackboard temperature range | 45-90 degree C | |
| Sample cell air temperature range | 35-65 degree C | |
| Radiation strength | Approx 40W/m2 under 300-400mm | |
| Xenon lamp power | 1500W, 2500W | |
| Protection degree | Electric leakage, circuit open, short circuit | |
| Sample bench size | 251*457mm(W*D*H) | |
| Overall size | 775*521*648 mm(W*D*H) | |
| Power supply | AC 220V, 50Hz | |
| Configuration | Equipped with paper free recorder | |
