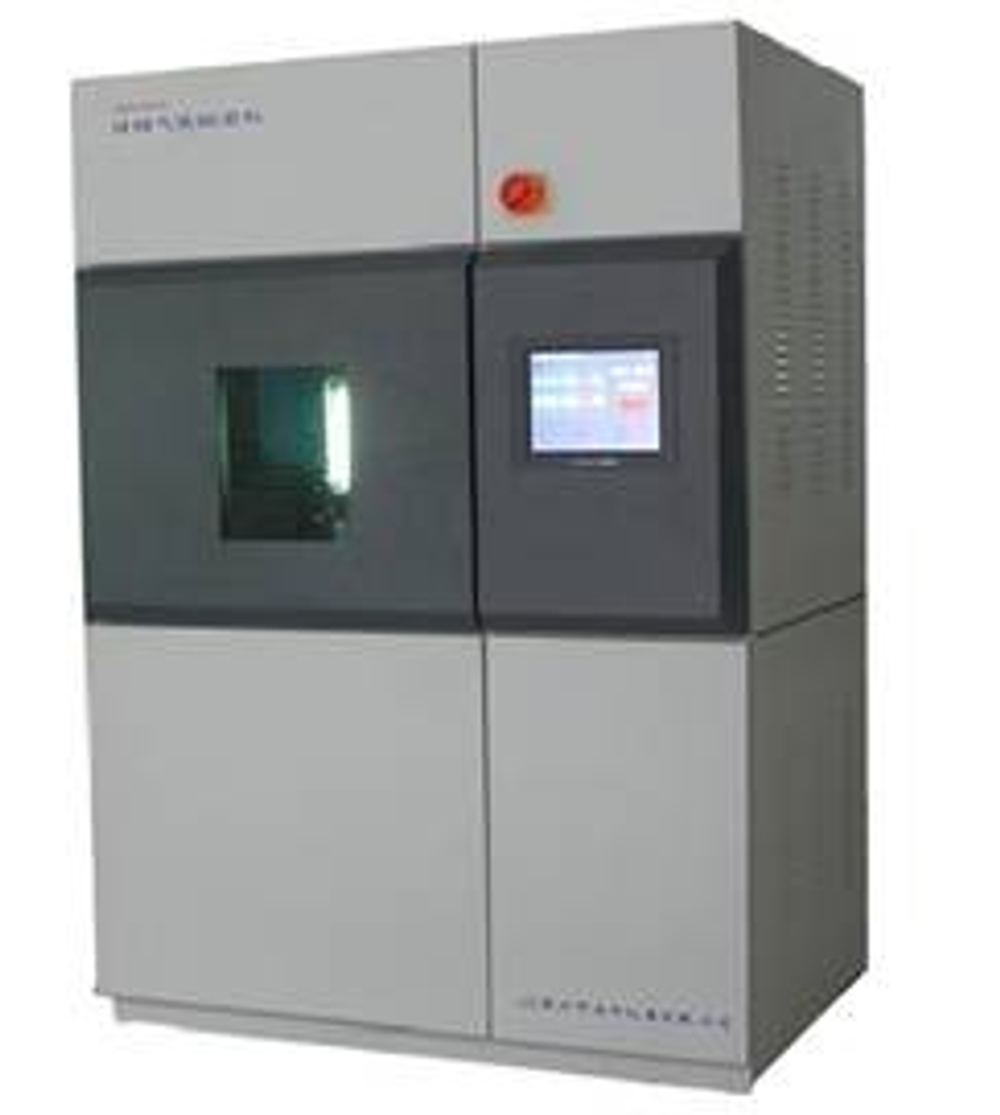

Model: QHX-3500
Application
The weather resistance test chamber can simulate light, raining, spray, light dark alternation, changing temperature and humidity, thus to determine the materials weather resistance charateristics.
Standards compliance
GB/T8430 GB/T12831 GB/T14576 GB/T8427 GB/T1189 GB/T9344 GB 150.7 GB/T16422.1 GB/T1865 GB/T2423.24; AATCCTM16 ASTMG26 ASTM D2565 ASTMD4459 ASTM D6695 ASTM G155 SAE J1885 SAE J2412 SAE J2212 SAE J1960 SAE J2527 AATCC169; ISO105 ASE J1885KJ ISO11341 ISO4892 ISO03917 ISO11341 ISO 4892-2; PV 1303 PV 3929 PV 3930 DVM 0067- MA HES D6601 NES M0135 TSL 0601G GMW3414 EDS-T-7415 D47 1431.
Configurations
| Item | Parameters |
| Chamber temperature range | 20~80℃; resolution: 0.1℃ |
| Chamber humidity control range | Light circulation: 10~85RH%; resolution: 0.1RH%Dark circulation: 30~100RH%; resolution: 0.1RH% |
| Standard blackboard thermometer | 35~125℃; resolution: 0.1℃ |
| Blackboard thermometer( optional) | 35~120℃; resolution: 0.1℃ |
| Testing time control range | ≤10000h |
| Irradiance control range | 0.6~2.05W/m2@420nm;(340nm, 420nm, 300-400nm or 280-800nm optional)Accuracy: ±0.02W/ m2@420nm; digital setup, automatic offset； |
| Xenon lamp rate power | 3.0KW |
| Sample frame turning speed | 1-10rpm, can be setup |
| Sample clamp distribution diameter | Φ420mm |
| Sample clamp number | Bask area: 2188cm2 , 27pcS(GB); 18pcs(AS) |
| Sample clamp timing | ≤10000h |
| Photoperiod | ≤1000h |
| Spraying period | ≤1000h |
| Power supply | AC380V±10% 50Hz 10KW |
| Overall size | 1200×900×1800mm |
| Weight | 360kg |
